Product Details:
|
| Operating Temperature: | -20 OC To 50 OC | Operating Humidity: | 15 To 90%RH (non-condensing) |
|---|---|---|---|
| Working Pressure: | 90 To 110 KPa | Bias Voltage: | 0 MV |
| Highlight: | H2 Electrochemical Hydrogen Sensor |
||
Product Description:

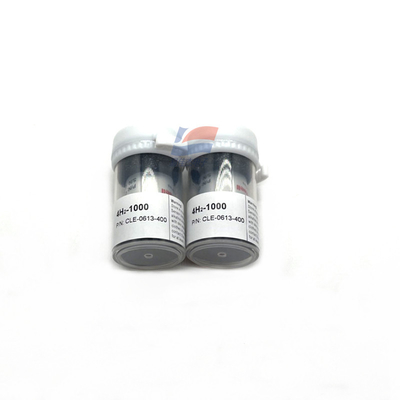

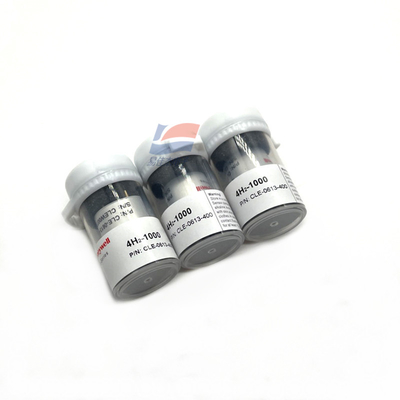

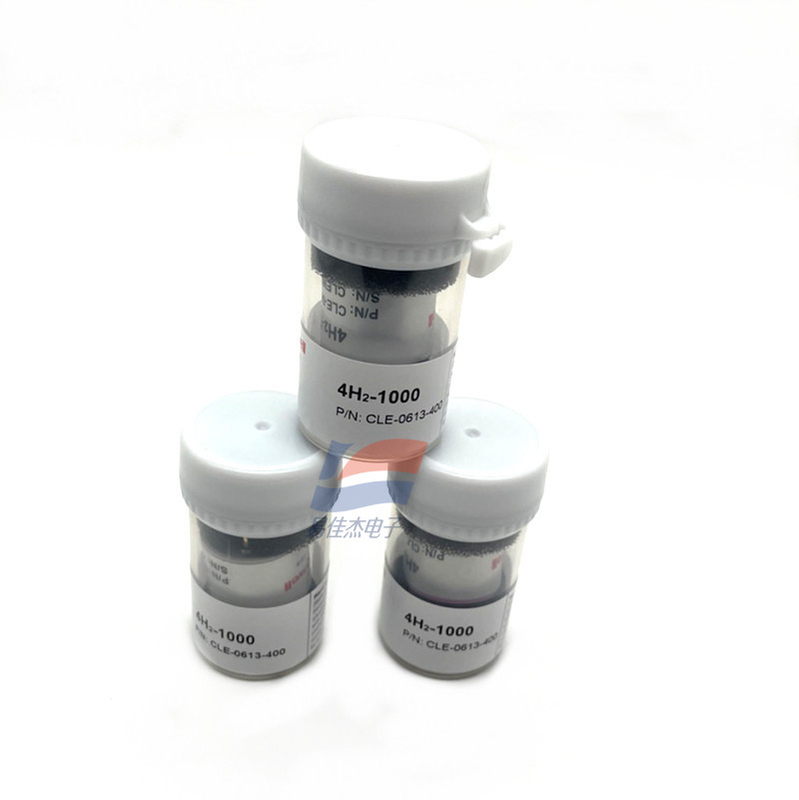

4H2-1000 CLE-0613-400 Electrochemical Hydrogen Sensor (H2)
Features:
Product model CLE-0613-400
Range 0 to 1000 ppm
Maximum load 2000 ppm
Sensitivity 0.02 ± 0.01 mA/ppm
Baseline (20oC) < ± 0.2A
Baseline drift is equivalent to 0 to 10 ppm
(-20 oC to 50 oC)
Resolution 10 ppm
Response time (T90) £70 seconds
linearity
Long-term stability < 2% signal value/month
Working condition
Operating temperature -20 oC to 50 oC
Operating humidity 15 to 90%RH (non-condensing)
Working pressure 90 to 110 kPa
Bias voltage 0 mV
Storage time 6 months (in special box)
Storage temperature 0oC to 20oC
Service life 2 years in the air
Warranty period 12 months after delivery
Physical property
It weighs about 5 grams
Azimuth requirement None
Temperature effect
Specifications:
| Product model | CLE-0613-400 |
| Range | 0 to 1000 ppm |
| Sensitivity | 0.02 ± 0.01 mA/ppm |
| Baseline | (20oC) < ± 0.2A |
