Product Details:
|
| Sensitivity: | 100± 30nA/ppm | Typical Baseline Range (pure Air): | ±1 Ppm NH3 Equivalent |
|---|---|---|---|
| T90 Time: | < 40 Seconds | Range: | 0-100 Ppm |
| Overload: | 200 Ppm | ||
| Highlight: | Portable Ammonia Sensor,High Stability Ammonia Sensor,Stationary Ammonia Sensor |
||

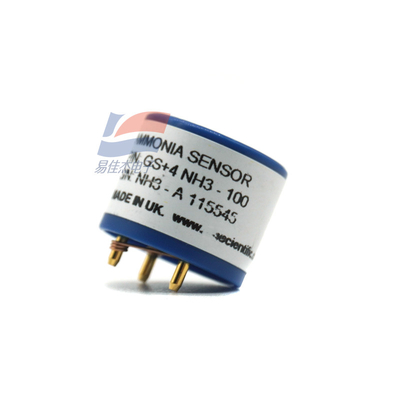

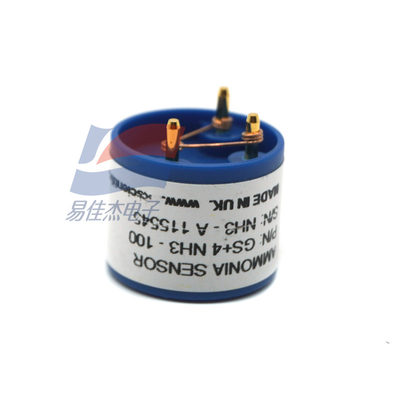

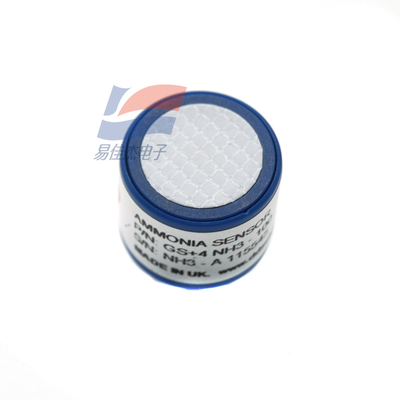

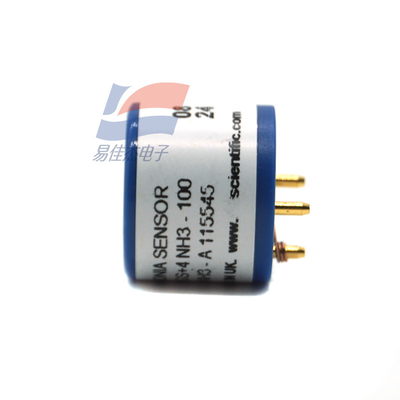

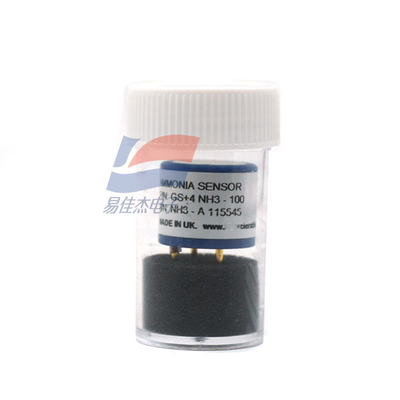

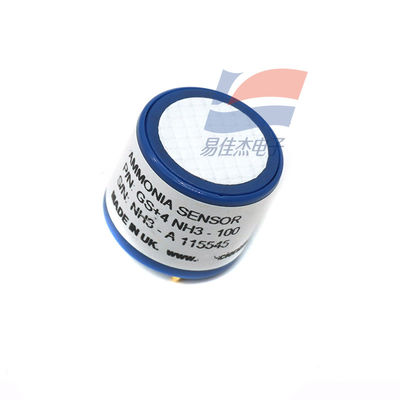

GS+4NH3-100 Ammonia Sensor (range 0-100ppm) Is A High Quality Ammonia Sensor With No Bias For Portable/Stationary Gas Detectors With High Stability
Environmental data:
Continuous temperature range: -40℃ to +50℃
Pressure range: 800 to 1200 mbar
Operating humidity: 15% to 90% RH
Long-term output drift: < 20% per year
Storage temperature: 0-20 ℃
Expected working life: > 24 months
| 2000ppm maximum current | 0.3 mA |
| Maximum O/C voltage | 1.3 V |
| Maximum S/C current | < 1A |
