Product Details:
|
| Operating Principle: | 3-electrode Electrochemical | Measurement Range: | 0-1 Ppm AsH3 |
|---|---|---|---|
| Maximum Overload: | 20 Ppm | Lower Detection Limit: | < 30 Ppb When Using |
| Filter: | To Remove H2S | Filter Capacity: | 200 Ppm Hr |
| Highlight: | Excellent Stability Arsine Gas Sensor,Reliable Electrochemical Arsine Gas Sensor |
||

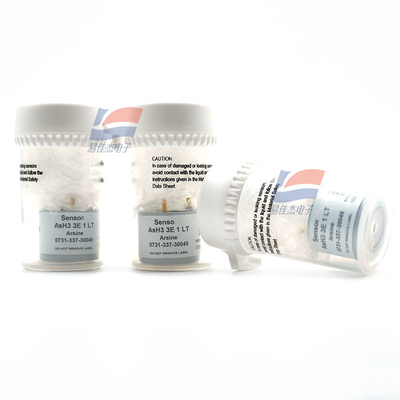

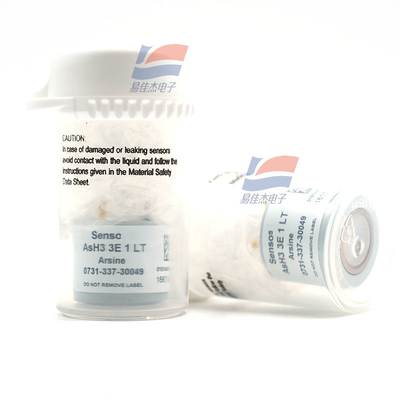

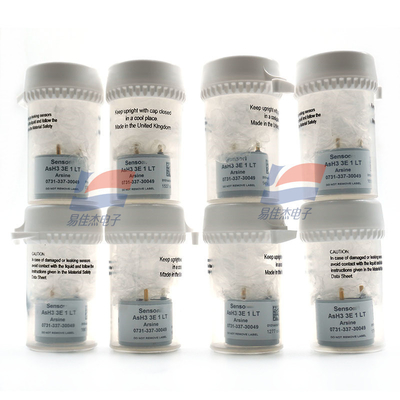

AsH3 3E 1 F LT Arsine (AsH3) Gas Sensor With H2S Filter Patent: US 7060169 B2 Excellent Stability
Key Features & Benefits:
• Excellent stability
• Resistant to drying out
• Reliable in continuous flow applications
IMPORTANT NOTE:
Connection should be
made via PCB sockets only. Soldering to pins
will render your warranty void.
All performance data is based on conditions
at 20°C, 50%RH and ambient pressure
using Sensoric recommended circuitry. For
information on sensor performance under
other conditions, refer to the Operating
Principles.
ELECTRICAL:
Recommended Load Resistor:1.5 kΩ
Bias Voltage: 0 V
Resolution:Dependent on Electronics < 15 ppb when using recommended circuitry
| Weight | 4.5 g |
| Operating Pressure Range | Atmospheric ± 10% |
| Operating Humidity Range | 10% to 95% RH non-condensing |
| Maximum at 2000ppm | <0.2 mA at 100 ppm |
| Maximum o/c Voltage | <500 mV |
| Maximum s/c Current | <1.0 A |
| Long Term Output Drift | <5% per 6 months |
| Expected Operating Life | 2 years in normal use |
