Product Details:
|
| Model Number: | TGS3870-F00 | Sensing Principle: | MOS Type |
|---|---|---|---|
| Standard Package: | Plastic Base And Metal Can | Target Gases: | Methane And Carbon Monoxide |
| Typical Detection Range: | Methane 1~25% LEL | ||
| Highlight: | Methane And Carbon Monoxide Sensor |
||

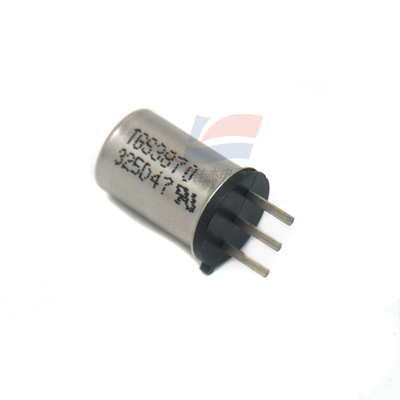

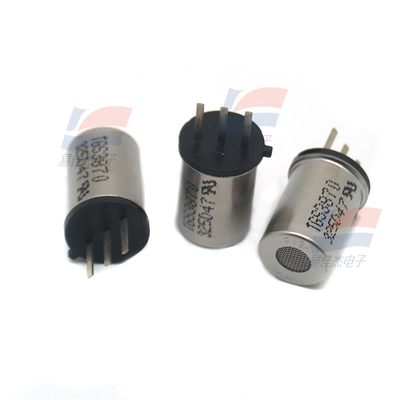

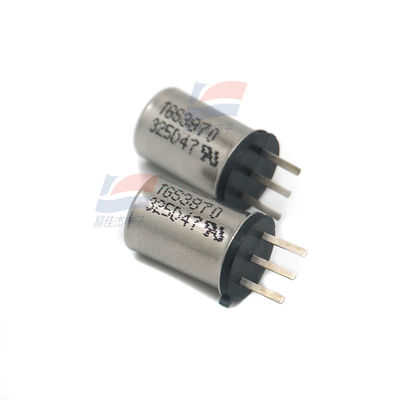

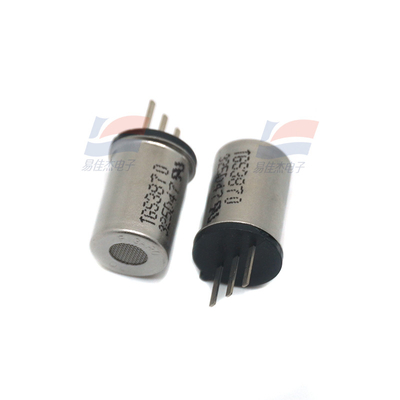

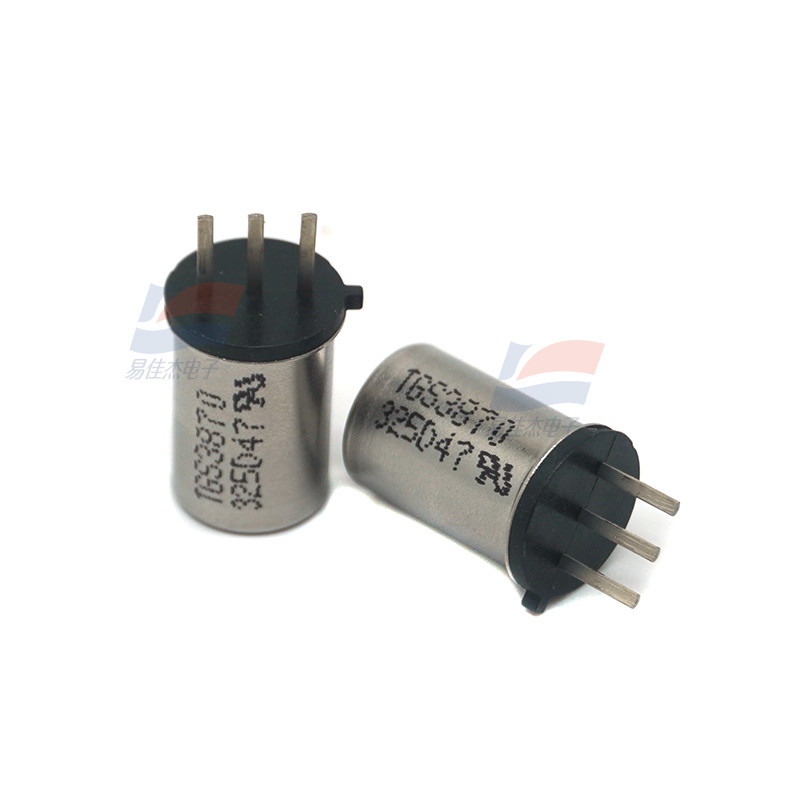

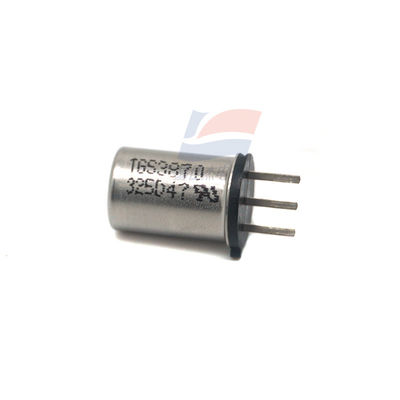

TGS3870 Methane And Carbon Monoxide Sensor Low Power Consumption
Features:
* Miniature size and low power consumption
* High sensitivity and selectivity to both
methane and carbon monoxide (CO)
* Low sensitivity to alcohol vapor
* Long life and low cost
Applications:
* Combination methane and carbon monoxide detectors
* Safety measures for lithium-ion batteries
| Heater voltage | VHH = 0.9V±3% for 5 sec |
| Circuit voltage | 5.0±0.2V DC pulse |
| Load resistance | Variable (>0.75kΩ) |
| Sensor resistance | 0.3kΩ~5.0kΩ in 3000ppm methane |
| Sensitivity | 0.44~0.7 |
| Preheating period before test | ≥5 days |
