ME2-C2H5OH-Ф16 Electrochemical Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle

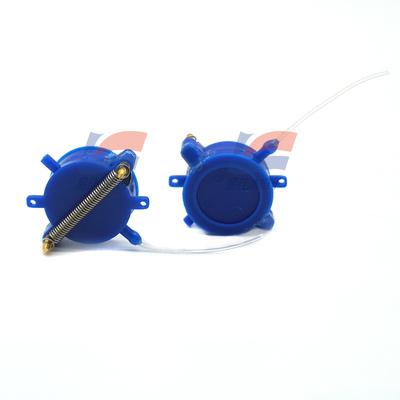

Large Image : ME2-C2H5OH-Ф16 Electrochemical Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle

Product Details:

Model Number:	ME2-C2H5OH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

ME2-C2H5OH-Ф16 Electrochemical Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle

Description

Detection Range:	0-1mg/L, Max 2mg/L	Detection Principle:	Electrochemical
Characteristics:	Public Traffic , Working At Heights，environmental Protection Alcohol Detection	Size:	φ16×6.5
Working Conditions:	Response Time≤20s Repeatability ±0.006mg/L Anticipated Using Life 2 Years	Notes:	The Widest Is 23
Highlight:	Electrochemical Gas Sensor , C2H5OH Gas Sensor , Current Based Gas Sensor

ME2-C2H5OH-Ф16 Electrochemical Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle

Features:

* Low consumption

* High precision

* High sensitivity

* Wide linear range

* Good anti-interference ability

* Excellent repeatability and stability

Application:

Widely used for public traffic ,environmental protection alcohol detection

Measurement Range	(0～1.0)mg/L
Max detecting concentration	2.0 mg/L
Sensitivity	(6±2)µA/(mg/L)
Response time(T90)	≤20S
Load resistance(recommend)	10Ω
Repeatability	±0.006mg/L
Stability(／month)	＜2﹪
Output Linearity	linear

ME2-C2H5OH-Ф16 Electrochemical Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle 0
