Product Details:
|
| Detection Gas: | C2H4 | Detection Range: | Detection Range |
|---|---|---|---|
| Max. Range: | 200ppm | Sensitivity: | （0.070±0.015）µA/ppm |
| Resolution: | 0.5ppm | Response Time(T90): | <20S |
| Highlight: | Electrochemical Oxidation Process Electrochemical Sensor,Direct Proportion Electrochemical Sensor |
||

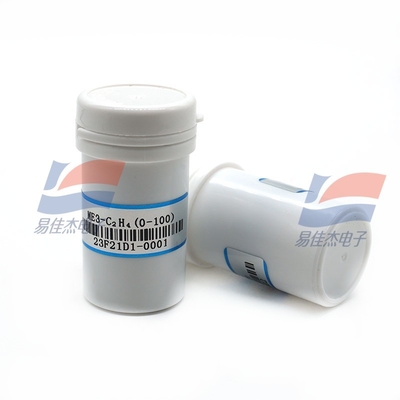

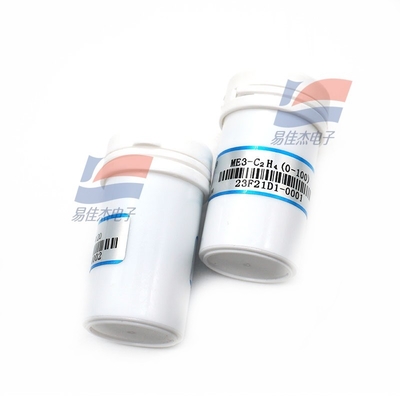

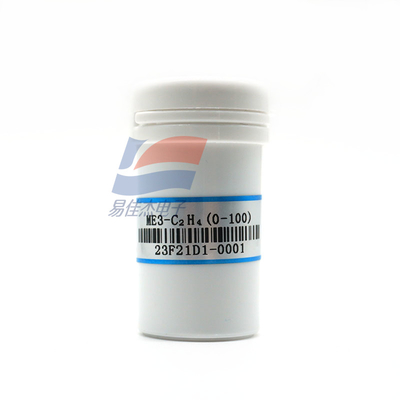

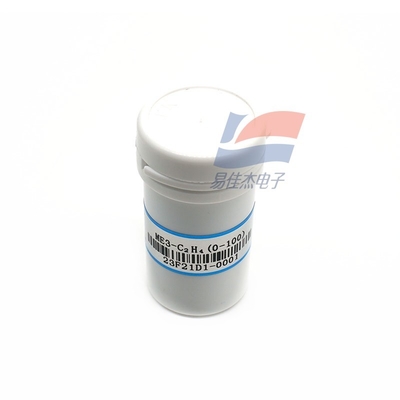

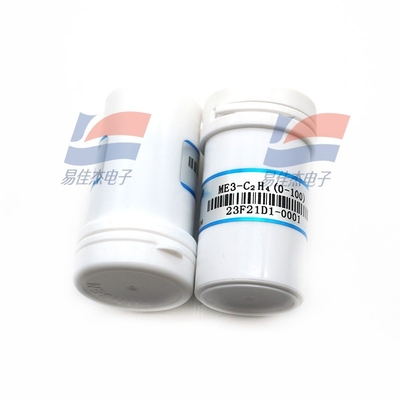

ME3-C2H4 Electrochemical Sensor Make Use Of Electrochemical Oxidation Process On The Working Eectrode In Electrolytic Cell And The Current Produced In Electrochemical Reaction In Direct Proportion
ME3-C2H4 electrochemical gas sensor make use of electrochemical oxidation process on the working electrode in electrolytic cell. And the current produced in electrochemical reaction is in direct proportion to concentration while following Faraday law. So that concentration of target gas can be tested by current.
Features :
Low consumption
High precision & high sensitivity
Wide range of linearity
Good anti-interference ability
Excellent Stability and reliability
Application :
Detecting ethylene in industry and environmental protection field
| Stability per month | ＜5﹪ |
| Zero drift(-20°C-40°C) | 10ppm |
| Tem. range | -20°C-50°C |
| Pressure range | standard atmosphere ±10% |
| Humidity range | 15%—90%RH |
