Product Details:
|
| Detection Gas: | Carbon Monoxide(CO) | Measurement Range: | 0～1000ppm |
|---|---|---|---|
| Max Detecting Concentration: | 2000ppm | Sensitivity: | （0.070±0.015）µA/ppm |
| Resolution Ratio: | 0.5ppm | Response Time（T90）: | ＜20S |
| Highlight: | Low Consumption ME3-CO Gas Sensor,High Precision ME3-CO Gas Sensor,1000ppm ME3-CO Gas Sensor |
||

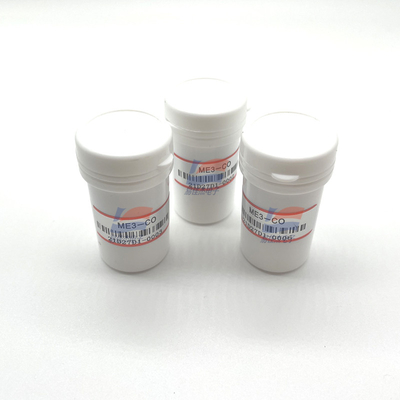

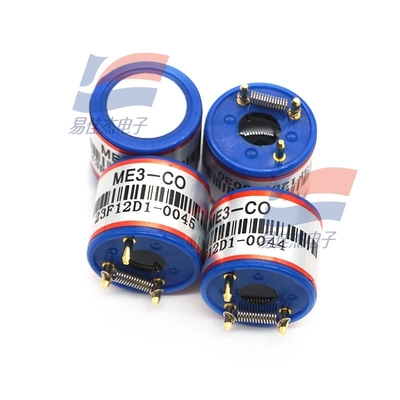

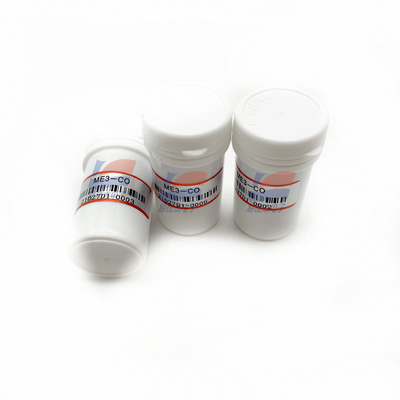

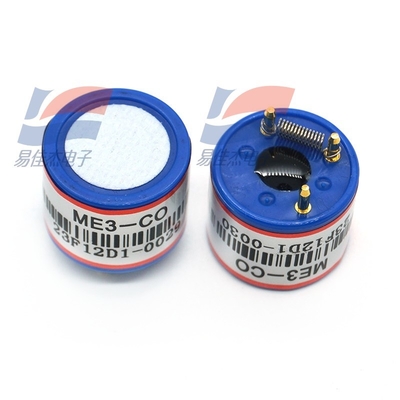

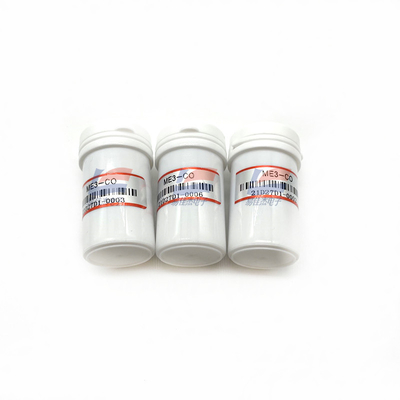

ME3-CO Electrochemical Carbon Monoxide Gas Sensor Low Consumption High Precision
ME3-CO electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.
Features:
* Low consumption
* High precision
* High sensitivity
* Wide linear range
* Good anti-interference ability
* Excellent repeatability and stability
Application :
Widely used in industrial and environmental protectionl fields
| Zero drift(-20℃～40℃) | ≤10ppm |
| Storage temperature | -20℃～50℃ |
| Storage Humidity | 15﹪～90﹪RH |
| Pressure range | Standard atmospheric pressure ±10﹪ |
| Anticipated using life | 3 years(in air) |
