Product Details:
|
| Photosensitivity (typical Value): | 0.45A /W | Dark Current (Max.): | 200 PA |
|---|---|---|---|
| Cut-off Frequency (typical Value): | 20 MHz | Junction Capacitance (typical): | 25 PF |
| Highlight: | Electrical Toxic Ammonia Sensor,Electrical Electrochemical Toxic Ammonia Sensor |
||
Product Description:

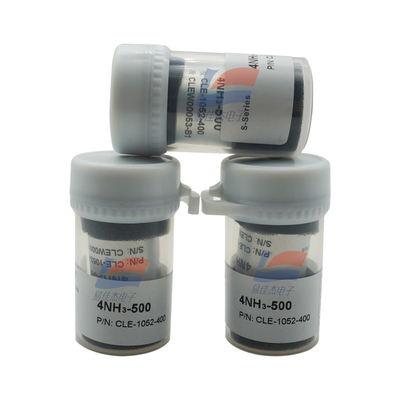

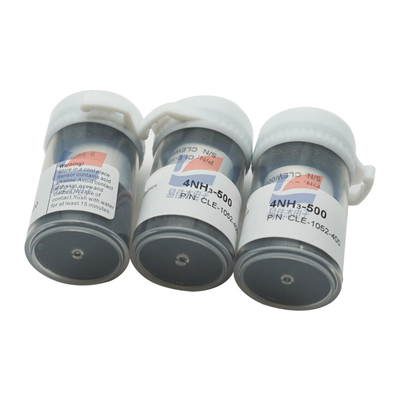

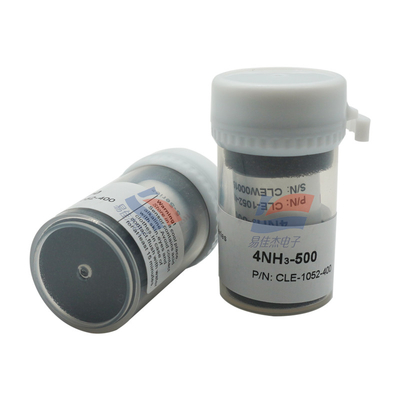

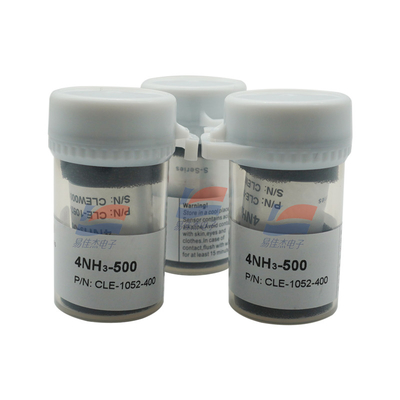

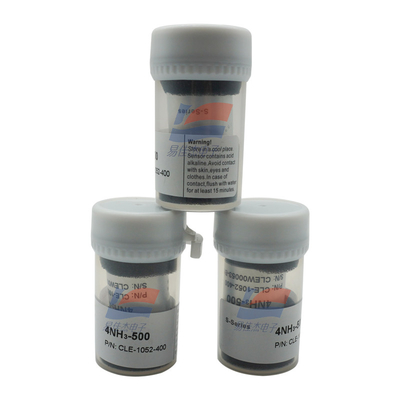

4NH3-500 CLE-1052-400 Electrochemical Toxic Ammonia Sensor Electrical And Electrical Special
Features:
Performance Characteristics
Part Number CLE-1213-400
Nominal Range 0 to 500 ppm
Sensitivity 0.058 0.033 nA/ppm
Baseline ( 20 oC ) - 0.2 to 2.5 nA
Baseline Drift 0 to 25 ppm equivalent
(-20 oC to 50 oC)
Resolution 10 ppm
Response Time (T90) : 120 seconds
Linearity Linear
Long Term Output Drift < 2% signal/month
Temperature Range -20 oC to 50 oC
Operating Humidity 15 to 90%RH non-condensing
Pressure Range 90 to 110 kPa
Bias Potential + 300 mV
Storage Life 6 months in sealed container
Storage Temperature 0 oC to 20 oC
Expected Operating Life 2 years in air
Warranty 12 months from date of despatch
Specifications:
| Nominal Range | 0 to 500 ppm |
| Sensitivity | 0.058 - 0.033 nA/ppm |
| Baseline ( 20 oC ) | - 0.2 to 2.5 nA |
| Long Term Output Drift | < 2% signal/month |
