Product Details:
|
| Resolution: | 10ppm | Response Time: | (T90)70 Seconds |
|---|---|---|---|
| Long-term Stability: | <2% Signal Value/month | Bias Voltage: | 0mV |
| Highlight: | YJJ Nitrogen Dioxide Electrochemical Sensor,Nitrogen Dioxide Electrochemical Sensor |
||
Product Description:

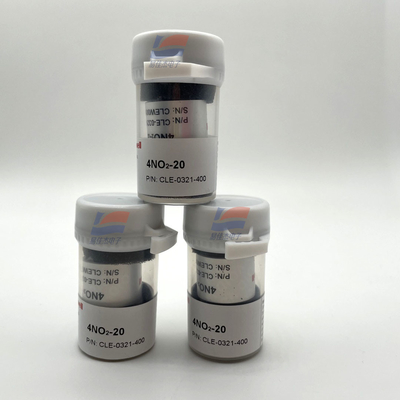

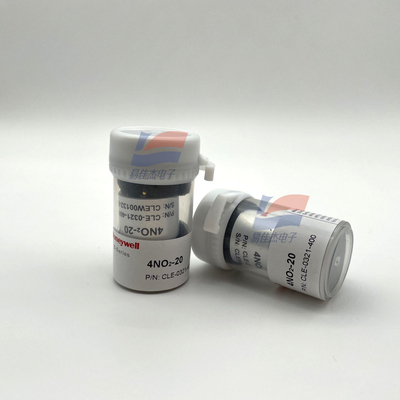

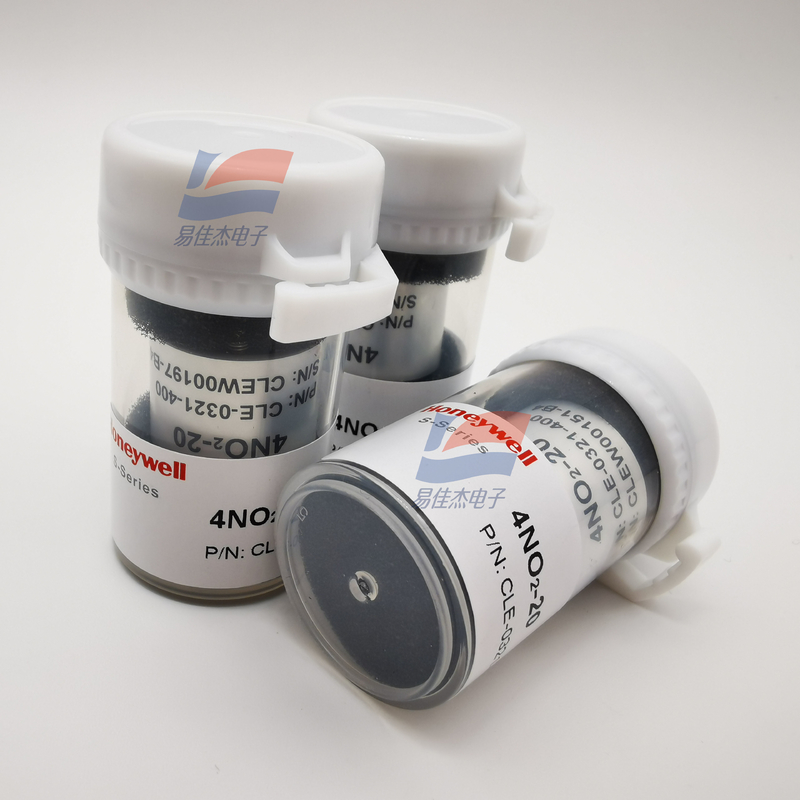

4NO2-20 CLE-0321-400 Nitrogen Dioxide Electrochemical Sensor
Features:
Performance Characteristics
electrochemical gas sensor is a microfuel cell original, but it is developed on the basis of the original oxygen sensor. It has been successfully developed because of low power consumption, good selectivity, high sensitivity and low efficiency. The main design features of the electrochemical gas sensor are capillary adsorption of liquid electrolyte, small holes limit gas diffusion, so that all target gases can reach the electrode surface and react with it
Performance characteristics:
Load 2000ppm
Sensitivity 0.02±0.01A/ppm
Baseline (20oC)<±0.2a
Baseline drift equivalent to 0to10ppm(-20oCto50oC)
Resolution 10ppm
Response time (T90)70 seconds
linearity
Long-term stability <2% signal value/month
Working condition
Operating temperature -20o
Cto50oCWorking humidity 15to90%RH (non-condensing)
Working pressure 90to110kPa
Bias voltage 0mV
Storage time 6 months (in the box)
Storage temperature 0oCto20oC
Service life 2 years in the air
Physical property
It weighs about 5 grams
Specifications:
| Nominal Range | 0 to 20 ppm |
| Sensitivity | 0.02±0.01A/ppm |
| Baseline ( 20 oC ) | (20oC)<±0.2a |
| Long Term Output Drift | <2% signal value/month |
