Product Details:
|
| Baseline Drift Is Equivalent To: | 0 To 0.5 Ppm | Resolution: | 0.1ppm |
|---|---|---|---|
| Long-term Stability: | <2% | Operating Temperature: | -20 ℃ To 50 ℃ |
| Highlight: | Phosphine Gas Sensor,Phosphine Sensor Electrochemical Gas Sensor,Phosphine Electrochemical Gas Sensor |
||
Product Description:

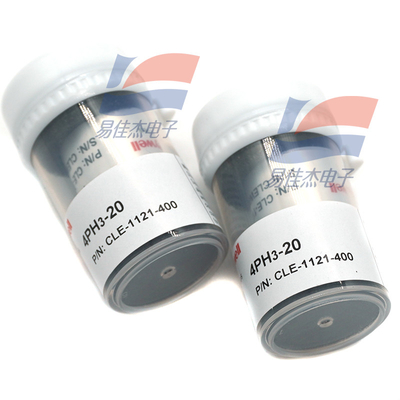

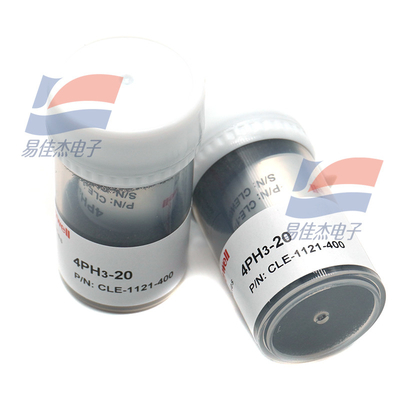

4PH3-20 Four-Series Electrochemical Gas Sensor Phosphine Sensor CLE-1121-400
Features:
Product model CLE-1121-400
Range 0 to 20 ppm
Load 100 ppmSensitivity 1.4 ± 0.6 mA/ppm
Baseline (20℃) <± 0.4 mA
Baseline drift is equivalent to 0 to 0.5 ppm
(-20 to 40℃)Resolution 0.1ppm
Response time (T90) £60 seconds
linearity
Long-term stability <2%
Working condition
Operating temperature -20 ℃ to 50 ℃
Operating humidity 15 to 90%RH(non-condensing)
Working pressure 90 to 110 kPa
Bias voltage 0 mV
Storage time 6 months (in special box)
Storage temperature 0 ℃ to 20 ℃
Specifications:
| Nominal Range | 0 to 20 ppm |
| Baseline | (20℃) <± 0.4 mA |
| Long-term stability | <2% |
| Operating temperature | -20 ℃ to 50 ℃ |
