Product Details:
|
| Range: | 0-30% O2 | Resolution: | 0.1% O2 |
|---|---|---|---|
| Maximum Load: | 90% O2 | Life: | Two Years In The Air |
| Highlight: | YJJ 4SPE O2 Gas Sensor,Electrochemical Oxygen Concentration Monitoring Gas Sensor,High O2 Levels Gas Sensor |
||
Product Description:

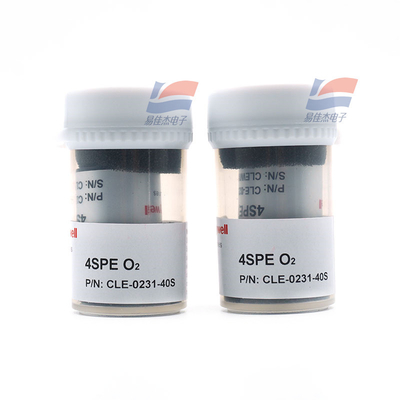

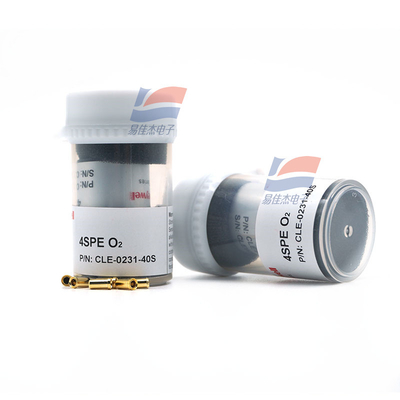

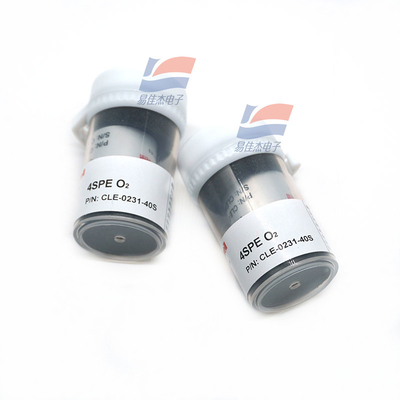

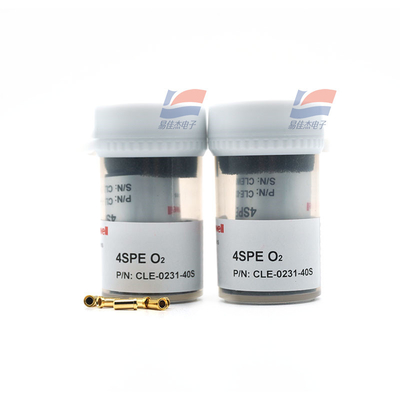

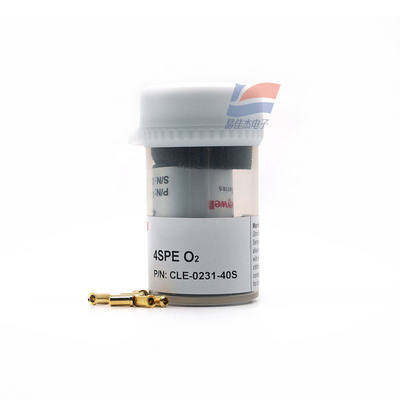

4SPE O2 CLE-0231-40S Electrochemical Oxygen Concentration Monitoring Gas Sensor
Features:
Product model CLE-0231-40S
Range 0 to 30% O2
Load 100 ppmSensitivity 1.4 ± 0.6 mA/ppm
Baseline (20℃) <± 0.4 mA
Baseline drift is equivalent to 0 to 0.5 ppm
(-20 to 40℃)Resolution 0.1ppm
Response time (T90) £60 seconds
linearity
Long-term stability <2%
Working condition
Operating temperature -20 ℃ to 50 ℃
Operating humidity 15 to 90%RH(non-condensing)
Working pressure 90 to 110 kPa
Bias voltage 0 mV
Storage time 6 months (in special box)
Storage temperature 0 ℃ to 20 ℃
Specifications:
| Nominal Range | 0 to 30% O2 |
| Baseline | (20℃) <± 0.4 mA |
| Long-term stability | <2% |
| Operating temperature | -20 ℃ to 50 ℃ |
