Product Details:
|
| Bias Voltage: | -600 ± 10 MV | Power Rating At 20.9%O2: | 0.5 MW |
|---|---|---|---|
| Casing Material: | ABS / NORYL | Weight: | 14 ± 0.2 G |
| Highlight: | YJJ Oxygen Gas Sensor,5OxLL Oxygen Gas Sensor |
||
Product Description:

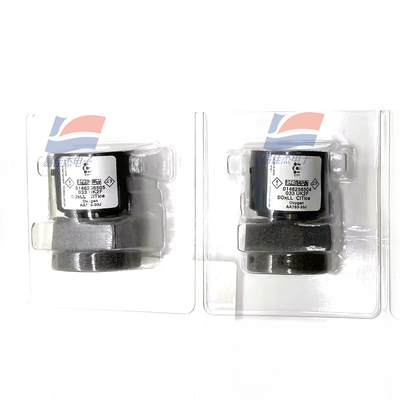

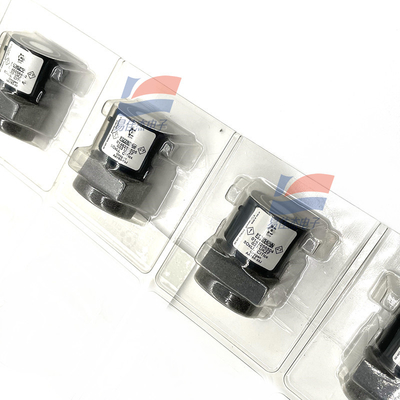

5OxLL Oxygen (O2) Gas Sensor for Emissions Part Number: AA783-33J
Features:
The purpose of this document is to present the performance specification of the 5OxLL longlife oxygen sensor.
This document should be used in conjunction with the 4OxLL / 5OxLL (Emissions) Characterisation Note, the 4OxLL
/ 5OxLL Operating Principles (OP19) and the Product Safety Datasheet (PSDS 5).
The data provided in this document are valid at 20°C, 50% RH and 1013 mBar for 3 months from the date
of sensor manufacture. For guidance on sensor performance outside of these limits, please refer to the
4OxLL / 5OXLL (Emissions) Characterisation Note.
Output signal can drift below the lower limit over time. For guidance on the safe use of the sensor, please refer to
the Operating Principles OP19.
• Long Life
• Improved field reliably
• Superior environmental performance
• Enhanced response time in extreme conditions
Specifications:
| Measurement Range | 0-25% vol. O2 |
| Maximum Overload | 30% vol. O2 |
| Output Signal | 80 - 130 mA in Air |
| T90 Response Time | <15 Seconds |
