Product Details:
|
| Measurement Range: | 0～25% VOL | MaxRange: | 30% VOL |
|---|---|---|---|
| Sensitivity: | 0.10±0.02mA（in The Air) | Response Time（T90）: | ≤15S |
| Load Resistance (recommended): | 100Ω | Repeatability: | <2% Output Value |
| Highlight: | Reduction Reaction Oxygen Sensor,Fixed Potential Type Oxygen Sensor |
||

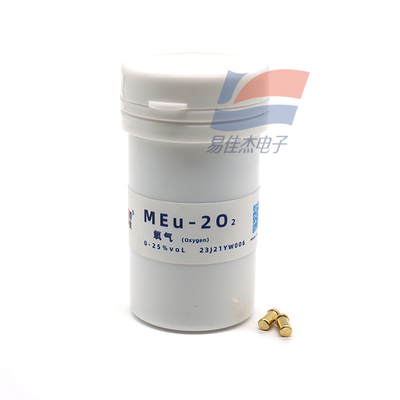

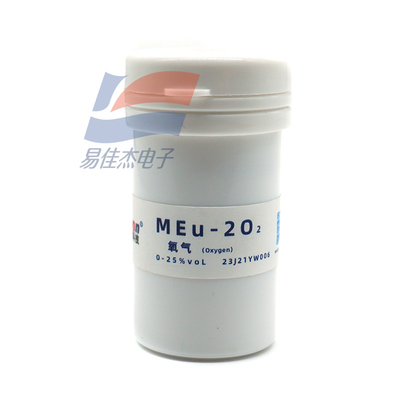

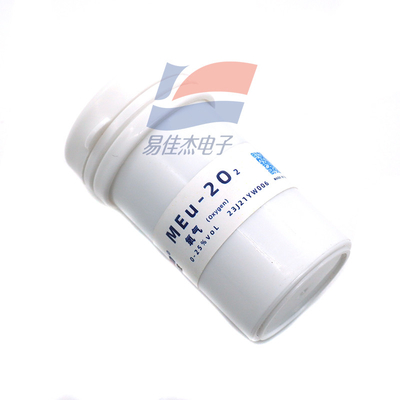

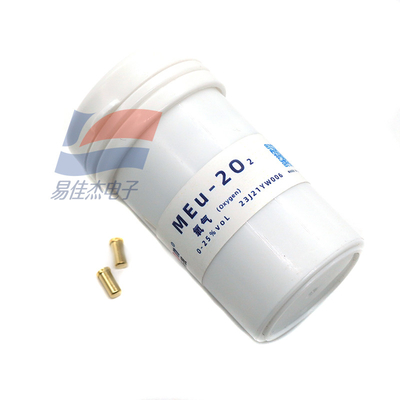

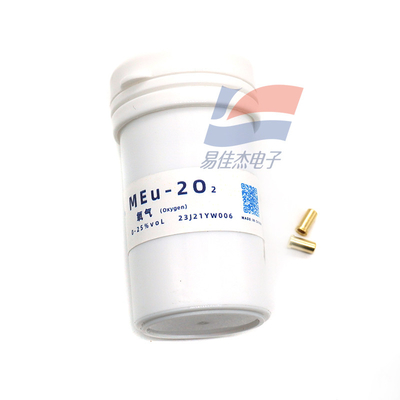

MEu-2O2 Oxygen Sensor Is A Fixed Potential Type Sensor Oxygen Undergoes A Reduction Reaction On The Working Electrode
Description :
MEu-2O2 oxygen sensor is a fixed potential type sensor. Oxygen undergoes a reduction reaction on the working electrode, and at the same time, a corresponding oxidation reaction occurs on the counter electrode, releasing charges to form a current. The current is proportional to the oxygen concentration and follows Faraday's law. The size can determine the level of oxygen concentration.
Features :
* Low power consumption, high precision, wide linear range, strong anti-interference ability, Excellent repeatability and stability
Application :
* Widely used in oxygen concentration detection in industries, mines, warehousing and environmental protection
| Output linearity | linear |
| Working temperature | -20℃~50℃ |
| Working humidity | 15﹪~90﹪RH |
| Working pressure | 1atm±10% |
| long-term drift | <2%/Month |
