Product Details:
|
| Gas Detected: | Combustible Gas (see Table 2 For Details) | Working Voltage: | 4.5 V ~ 5.5V DC |
|---|---|---|---|
| Average Current: | < 100mA | Interface Level: | 3.3V |
| Measurement Range: | 0~100%VOL Optional (view Table 2) | Warm-up Time: | <2min |
| Highlight: | High Resolution Gas Sensor,High Sensitivity Gas Sensor |
||

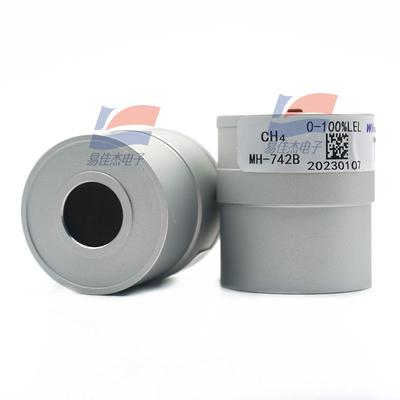

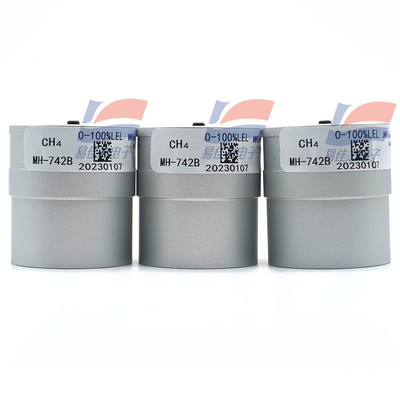

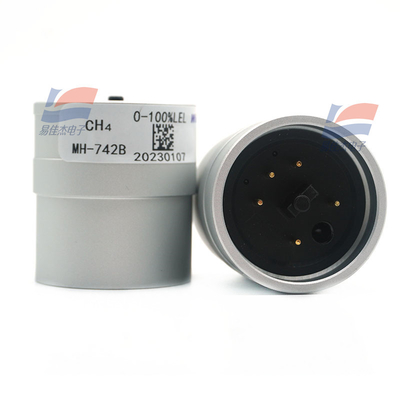

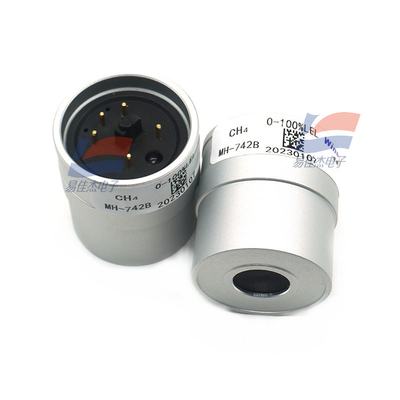

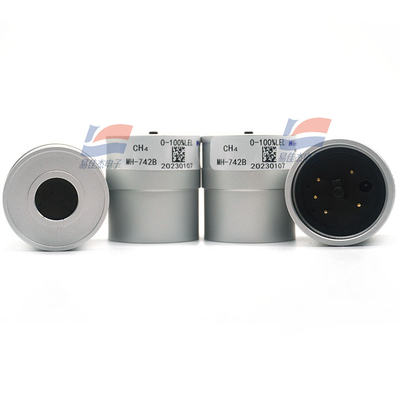

MH-742B Combustible Gas Sensor High Sensitivity High Resolution Low Power Consumption High sensitivity High Resolution Low Power Consumption
Product Description:
MH-742B is a universal type intelligent sensor to detect combustible gas,taking advantage of non-dispersive infrared (NDIR) principle. With high selectivity, no oxygen dependence, high performance and long lifespan features, MH-742B also has built-in temperature compensation feature. MH-742B is a compact and high-performance sensor based on infrared absorption of gas detection technology, micro-machining and sophisticated circuit design.
Features:
High sensitivity, high resolution, low power consumption Output method: UART, analog voltage signal, etc. Quick response Temperature compensation, excellent linear output Excellent stability, Long lifespan Anti-poisons, anti-vapor interference
Application :
Widely used for industrial field instrumentation, industrial-process control and safety protection
| Working Temperature | -40℃ ~ 70℃ |
| Working Humidity | 0 to 95%RH, non-condensing |
| Dimension | Φ39×44mm |
| Weight | 280g |
| Lifespan | >5 years |
