Product Details:
|
| Detection Gas: | CO2 | Working Voltage: | 5.0±0.1V DC |
|---|---|---|---|
| Average Current: | 150uA (@5V Power Supply) | Peak Current: | 90mA (@5V Power Supply) |
| Interface Level: | 3.3 V(Compatible With 5V) | Detection Range: | 0~10000ppm(optional) |
| Highlight: | NDIR Carbon Dioxide Gas Sensor |
||

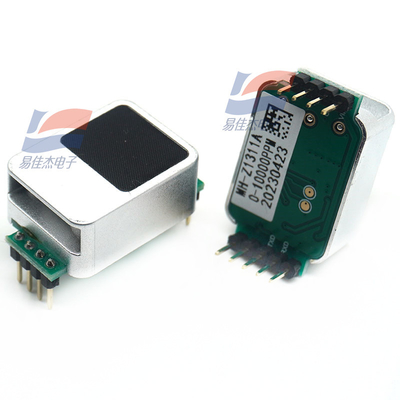

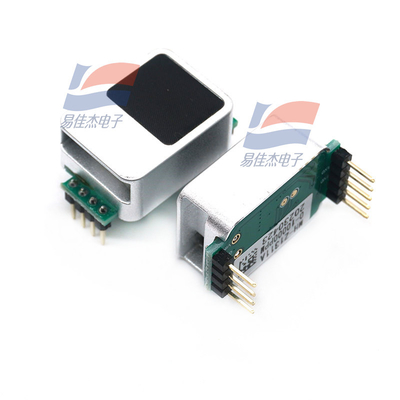

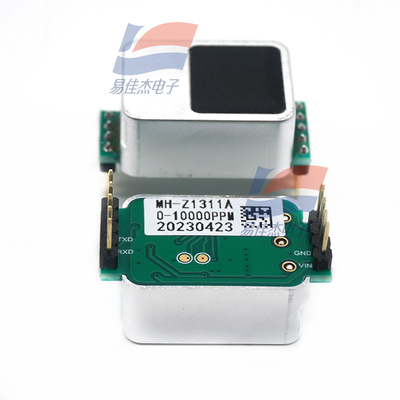

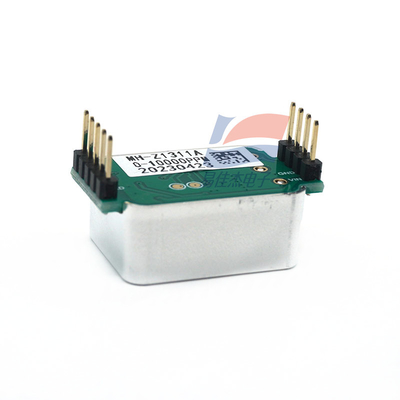

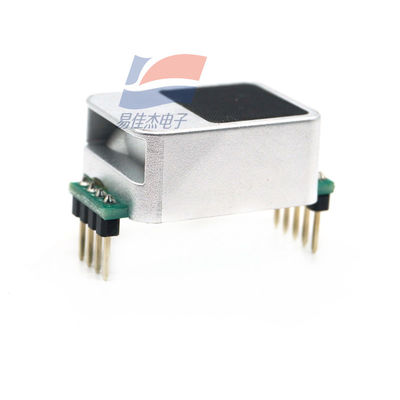

MH-Z1311A Carbon Dioxide Gas Sensor Is A General-purpose Small-scale Sensor That Uses The Principle Of non-Dispersive Infrared (NDIR) To Detect CO2 In The Air
Profile:
MH-Z1311A carbon dioxide gas sensor (hereinafter referred to as the sensor) is a general-purpose, small-scale sensor that uses the principle of non-dispersive infrared (NDIR) to detect CO2 in the air. It has good selectivity, no oxygen dependence, and long life. , Built-in temperature compensation, digital output, easy to use. The sensor is a high-performance sensor made by closely combining mature infrared absorption gas detection technology with precise optical circuit design and sophisticated circuit design.
Applications:
*HVAC refrigeration
*Air cleaner device
*Indoor air quality monitoring
*Smart home *Ventilation system
Main Features:
*The air chamber adopts electroplating treatment, waterproof and anti-corrosion
*High sensitivity, low power consumption
*Excellent stability
*Temperature compensation, excellent linear output
*Provide serial port (UART) output mode
*Long lifespan
*Anti-water vapor interference, anti-poisoning
| Response Time | T90 < 60 s |
| Working temperature | -10 ~ 50 ℃ |
| Working humidity | 0 ~ 95% RH (No condensation) |
| Weight | 5 g |
