Product Details:
|
| Sensor Type: | Flat Surfaced | Standard Encapsulation: | Metal Cap |
|---|---|---|---|
| Target Gas: | CH4, Nature Gas, Marsh Gas | Detection Range: | 300~10000ppm (methane, Natural Gas) |
| Loop Voltage: | ≤24V DC | Heater Voltage: | 5V±0.1V AC Or DC |
| Highlight: | Lower Consumption Flammable Gas Sensor,Small Size Flammable Gas Sensor,Fast Response Flammable Gas Sensor |
||

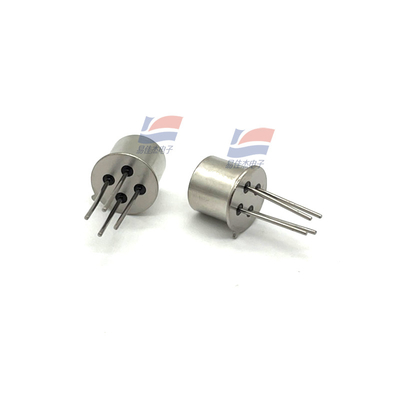

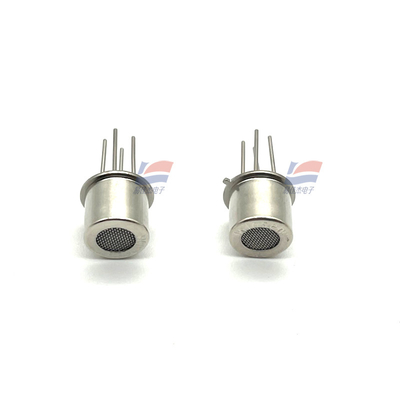

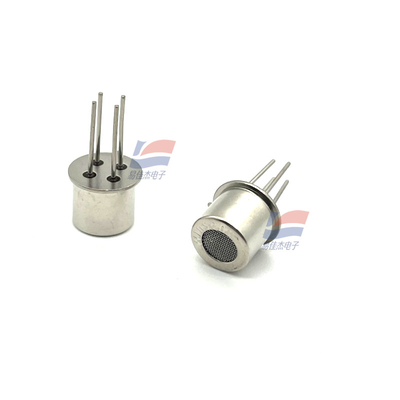

MP-4 Flammable Gas Sensor Lower Consumption Small Size Fast Response And Resume For Industrial Flammable Gas Alarm And Portable Gas Detector
MP-4 model with advanced planar construction is comprised of heater and metal oxide semiconductor material of subminiature Al2O3 ceramic plate, fetch out electrode down-lead, encapsulation in metal base and cap. When the target gas exists, the sensor’s conductivity is more higher along with the gas concentration rising. Please use simple electrocircuit, convert change of conductivity to correspond output signal of gas concentration.
Features:
* Lower consumption
* Small size
* Fast response and resume
* Highest sensitivity
* Excellent stability and long life
* Easy circuit and big signal output
* Excellent selectivity
Application:
It is widely used in domestic gas leakage alarm, industrial flammable gas alarm and portable gas detector.
| Sensitivity | Ro(in air)/Rs(5000ppm CH4)≥5 |
| Concentration Slope | ≤0.6(R5000ppm/R1000ppm CH4) |
| Temp. Humidity | 20℃±2℃；55%±5%RH |
| Standard test circuit | Vc::5V±0.1V; VH: 5V±0.1V |
| Preheat time | Not less than 48 hours |
