Product Details:
|
| Sensor Type: | Flat Surfaced | Standard Encapsulation: | Metal Cap |
|---|---|---|---|
| Target Gas: | CO Gas | Detection Range: | 50-1000ppm CO |
| Loop Voltage: | ≤10V DC | Heater Voltage: | 5V±0.1V AC Or DC(high Temp.) 1.5V±0.1V AC Or DC(low Temp.) |
| Highlight: | High Sensitivity Carbon Monoxide Gas Sensor,Fast Response Carbon Monoxide Gas Sensor,Mini Size Carbon Monoxide Gas Sensor |
||

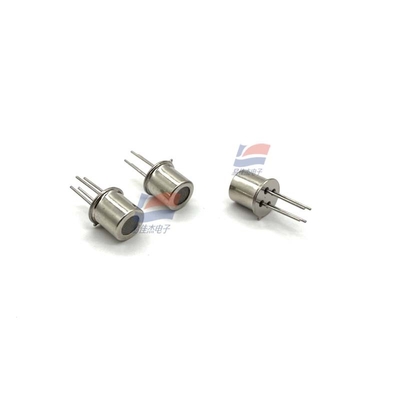

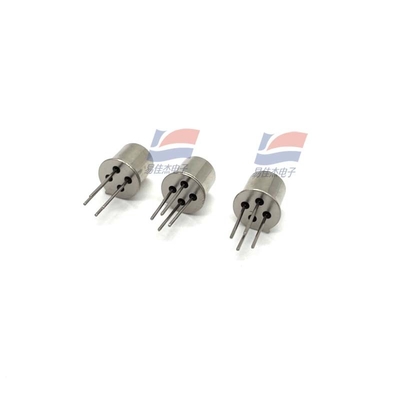

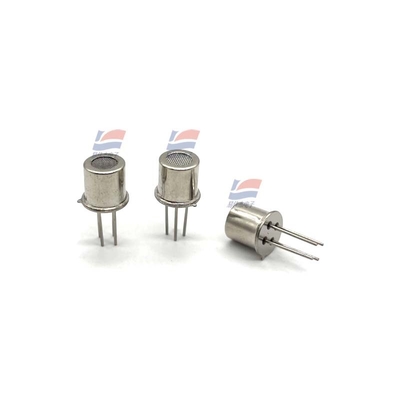

MP-7 Carbon Monoxide Gas Sensor High Sensitivity To CO Mini Size Fast Response And Resume Character For CO Gas Leakage Alarm And Detector
MP-7 adopts advanced planar construction production technics, using MOS material formed by micro AL2O3 ceramic tube and heater, electro-down-lead be fetched out, and are fixed into a metal base and cover. Adopting low and high temperature circling detection: when low temperature (VH=1.5V), it detects CO, Conductance of sensor bigger along with CO concentration in air; When high temperature(VH=5.0V), clean other gases, using simple circuit could change the conductance, change it to be output signal which relatively to the gas concentration.
Character:
* High Sensitivity to CO
* Mini Size
* Fast response and resume character
* Excellent Stability and long life
Application :
* They are used in gas leakage detecting equipment in family, industry and commercial field, fire resistance/ safety detection system.
* CO gas leakage alarm and detector
| Operation Temp | -10℃～50℃ |
| Storage Temp. | -20℃～70℃ |
| Relative Humidity | ＜95%RH |
| Preheat time | Not less than 48 hours |
| Lifespan | 10 years |
