Product Details:
|
| Detecting Whether Ethanol Steamy Exist In Other Places: | Flat Surfaced Semiconductor | Flat Surfaced Semiconductor: | Metal Cap |
|---|---|---|---|
| Target Gas: | Alcohol Gas | Detection Range: | 0~500ppm Alcohol |
| Loop Voltage: | ≤24V DC | Heater Voltage: | 2.5V±0.1V AC Or DC |
| Highlight: | Small Size Alcohol Gas Sensor,Highest Sensitivity Alcohol Gas Sensor,Fast Response Alcohol Gas Sensor |
||

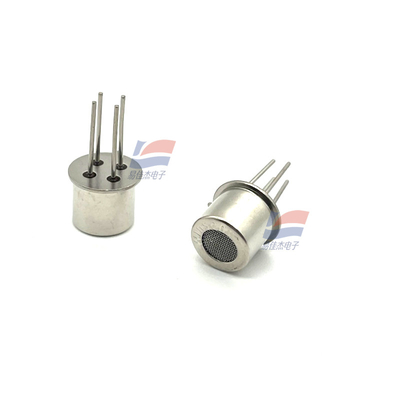

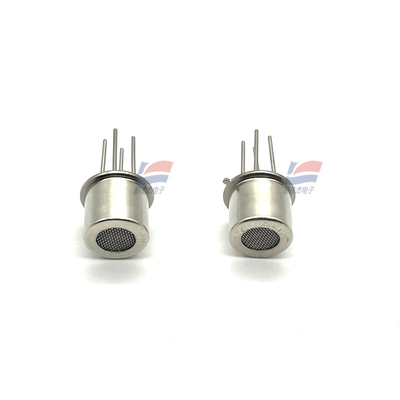

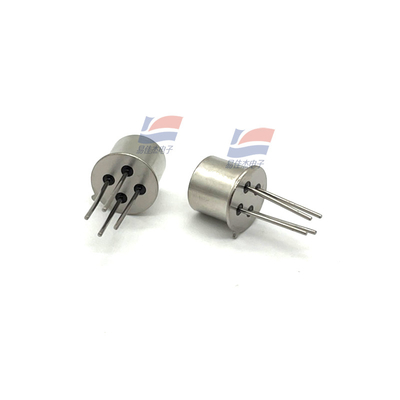

MP-3B Alcohol Gas Sensor Lower Consumption Small Size Fast Response And Resume Highest Sensitivity For Detecting Whether Ethanol Steamy Exist In Other Places
MP-3B model with advanced planar construction is comprised of heater and metal oxide semiconductor material of subminiature Al2O3 ceramic plate, fetch out electrode down-lead, encapsulation in metal base and cap. When the target gas (alcohol) exists , The sensor’s conductivity is more higher along with the gas concentration rising. Please use simple electrocircuit, Convert change of conductivity to correspond output signal of gas concentration.
Features:
* Lower consumption
* Small size
* Fast response and resume
* Highest sensitivity
* Excellent stability and long life
* Easy circuit and big signal output
* Excellent selectivity
Application :
It is used for detecting whether the driver and other people who drink alcohol, or detecting whether ethanol steamy exist in other places.
| Sensitivity | Ro(in air)/Rs(50ppm C2H5OH)≥3 |
| Concentration Slope | ≤0.6(R300ppm/R50ppm C2H5OH) |
| Tem. Humidity | 22℃±2℃；55%±5%RH |
| Standard test circuit | Vc:2.5V±0.1V |
| Preheat time | Not less than 48 hours |
