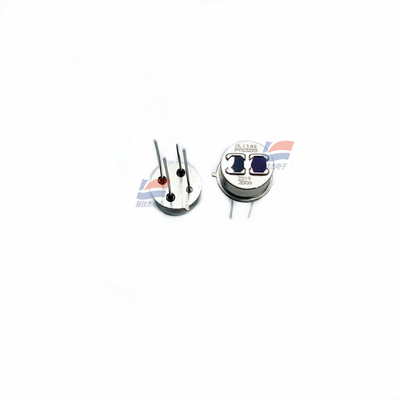

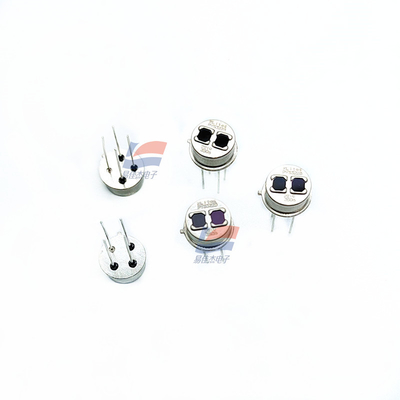

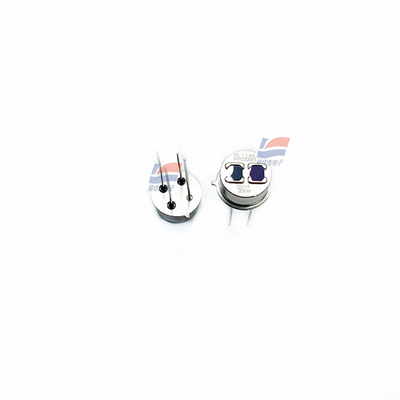

YJJ PYS3228 Series Pyroelectric Sensor Infrared Pyroelectric Detector Dual Channel With Filter

Product Description:

PYS3228 Series Pyroelectric Sensor Infrared Pyroelectric Detector Dual Channel With Filter

Features:

PYS3228 series infrared gas sensor is a stable and reliable, infrared gas analysis industry customers commonly used a two-channel pyroelectric sensor, one measurement channel, one reference channel

It can detect carbon monoxide, carbon dioxide, methane, CH compounds, nitric oxide, nitrous oxide, NO compounds, sulfur hexafluoride, freon, etc

Can be used for infrared gas analyzer infrared gas leakage detection infrared end-of-breath carbon dioxide module

Excelitas USA

Infrared pyroelectric detector

Dual channel self-contained filter

It can detect carbon monoxide, carbon dioxide, methane, CH compounds, nitric oxide, nitrous oxide, NO compounds, sulfur hexafluoride, freon, etc

Can be used for infrared gas analyzer infrared gas leakage detection infrared end-of-breath carbon dioxide module

Excelitas USA

Infrared pyroelectric detector

Dual channel self-contained filter

It can detect carbon monoxide, carbon dioxide, methane, CH compounds, nitric oxide, nitrous oxide, NO compounds, sulfur hexafluoride, freon, etc

Can be used for infrared gas analyzer infrared gas leakage detection Infrared end-of-breath carbon dioxide module, can measure the gas types and common models are as follows:

Model Measureable gas name (center wavelength)

PYS3228TCG1/G20 CO (4.64um)

PYS3228TCG1/ G20.3CO (4.64um/3.93um)

PYS3228TCG2/G20 CO2 (central wavelength 4.26um)

PYS3228TCG2.2/G20 CO2(central wavelength 4.43um)

PYS3228TCG2.2/G2.3 CO2 (4.43um and 4.3um)

PYS3228TCG2.6/G20 N2O (4.53um)

PYS3228TCG5/G20 HC(3.4um)

PYS3228TCG5.2/G20 HC(3.3um)

PYS3228TCG5.3/G20 HC(3.09um)

PYS3228TCG5/5.3 HC(3.4um/3.09um)

PYS3228TCG5.5/G20 HC(3.235um)

PYS3228TCG7.1/G20 Freon R12(11.3um)

PYS3228TCG7.2/G20 Freon R134a(10.27um)

Pys3228tcg7/3/g20 Freon (12.4um)

PYS3228TCG7.4/G20 Freon (10.6um)

PYS3228TCG7.5/G20.3 Freon (8.416um)

PYS3228TCG7.6/G20.3 Freon (8.95um)

PYS3228TCG7.7/G20.3 Freon (8.18um)

PYS3228TCG7.8/G20.3 Freon (10.56um)

Note:

G20 reference channel, central wavelength: 4.0um,

G20.3 reference channel, central wavelength: 3.93um,

Specifications:
