Product Details:
|
| Lower Limit Of Measurement: | 0.03ppm | Temperature Range: | -10 To 40℃ |
|---|---|---|---|
| Humidity Range: | 15%-90%, Non-condensation | Response Time T90: | 30 Seconds |
| Temperature Drift: | 0.35%/℃ | ||
| Highlight: | YJJ Electrochemical Formaldehyde Sensor,Economical Electrochemical Formaldehyde Sensor |
||
Product Description:

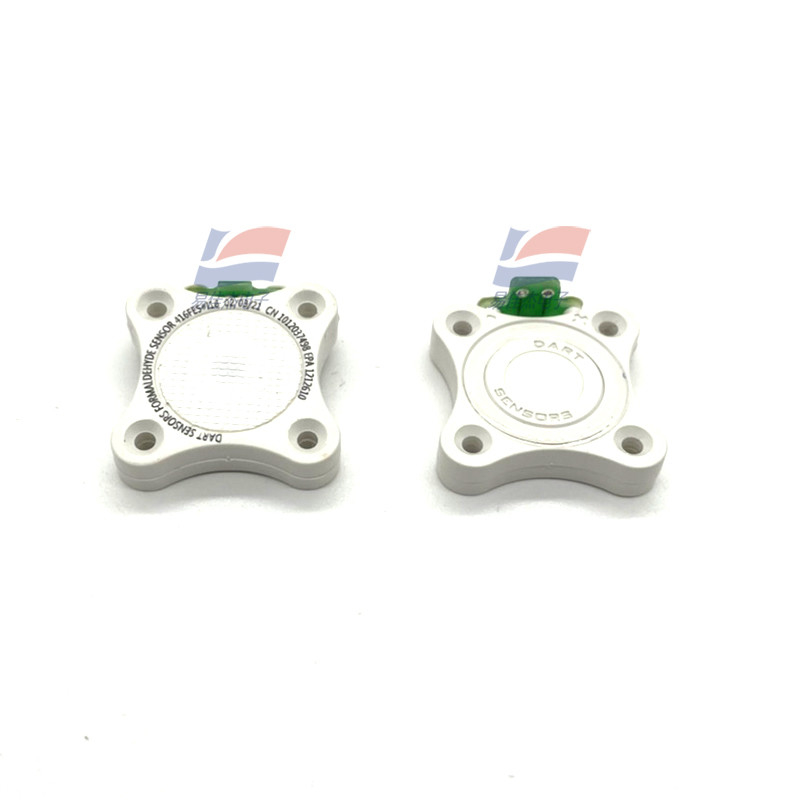

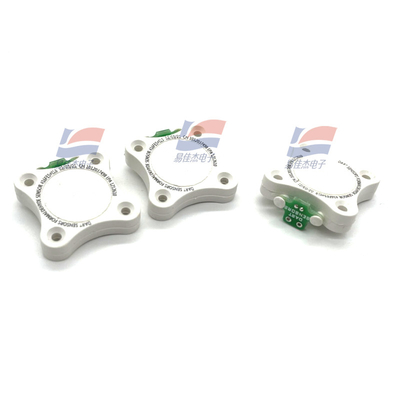

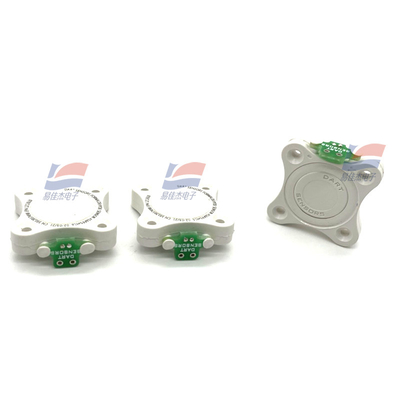

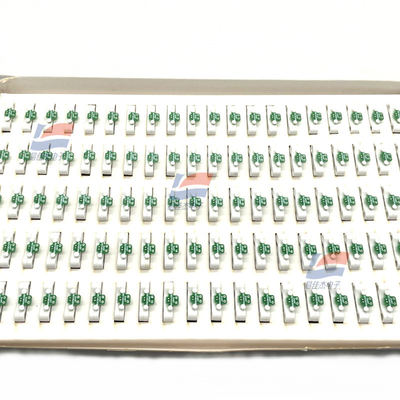

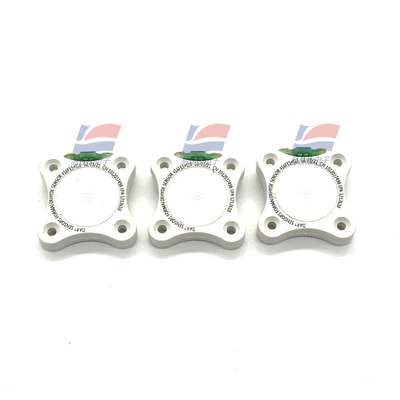

CH2O/2-FE5 Economical Electrochemical Formaldehyde Sensor
Features:
electrochemical formaldehyde gas sensor produced by dart Sensor in the United Kingdom is a truly continuous monitoring sensor, without the need for any gas sampling or pumping.
The sensor is a two-electrode electrochemical sensor, implemented by diffusion principle, so no external sampling hardware is required. When formaldehyde gas is present, there will be a small direct current generation; The sensor itself does not require a power supply, but the current generated requires external data acquisition to turn it into a readable signal.
Technical indicators:
Measuring range: 0-5ppm;
Life span; 3 years;
Output signal: 150-350nA/ppm;
Resolution: 0.01ppm
Lower limit of measurement: 0.03ppm
Temperature range: -10 to 40℃
Humidity range: 15%-90%, non-condensation;
Response time t90:30 seconds
Temperature drift: 0.35%/℃
Baseline drift (20℃-40℃) : 0ppm
Size: 40x35x9.5mm
Application: Handheld detector, indoor detection device
Specifications:
| Measuring range | 0-5ppm; |
| Life span | 3 years |
| Output signal | 150-350nA/ppm; |
| Resolution | 0.01ppm |
