Product Details:
|
| Operating Voltage: | 3.0V To 6.0V DC | Recommended Voltage: | 5.0V DC |
|---|---|---|---|
| Working Current: | Average 60mA @5.0V DC | Pressure Effect: | Accuracy Can Be Guaranteed Within ± 5% Of The Pressure At The Time Of Calibration |
| Response Time: | T90<30S, Inflation | Preheating Time: | 60S |
| Highlight: | Intelligent Micro Gas Sensor,Environmental Monitoring Gas Sensor,Medical Biological Engineerin Gas Sensor |
||

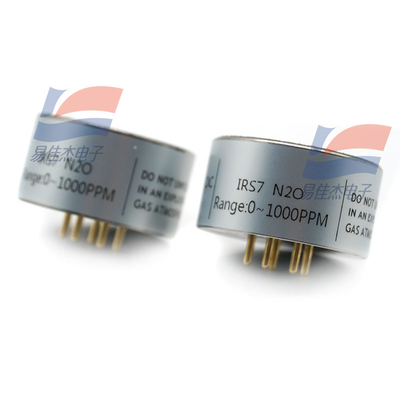

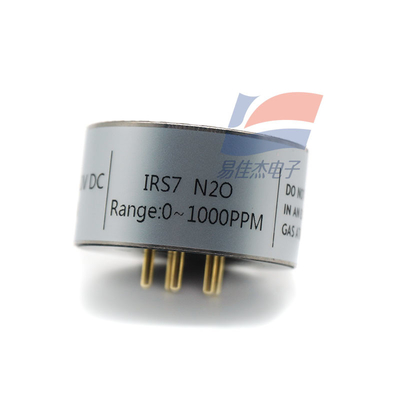

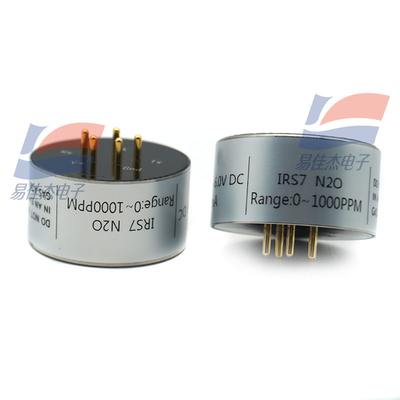

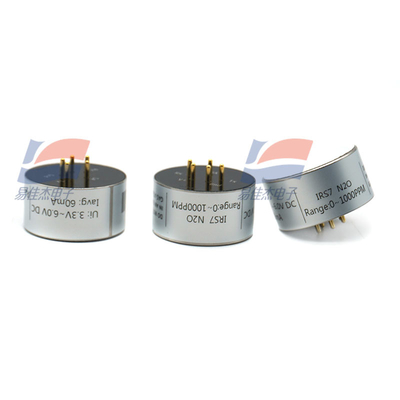

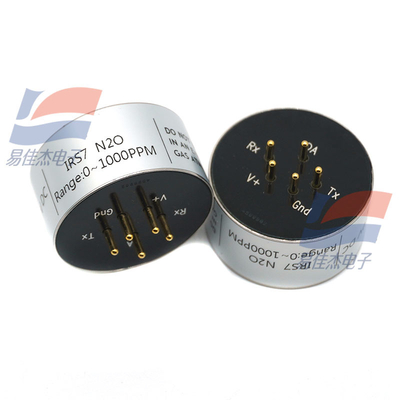

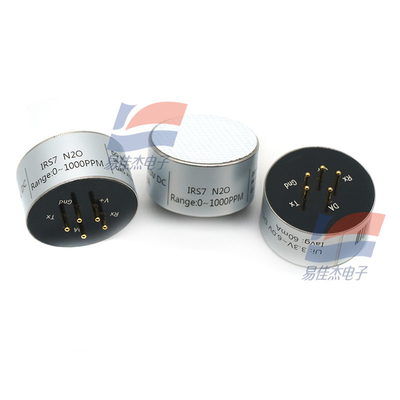

IRS7 N2O 7 Series Infrared Gas Sensor Intelligent Micro Gas Sensor Based On NDIR Principle No Oxygen Dependence Anti-poisoning Can Be Used In Environmental Monitoring Medical Biological Engineerin
Product introduction:
The sensor is based on the NDIR principle design of intelligent micro gas sensor, no oxygen dependence, anti-poisoning, a certain degree of corrosion resistance, long life, high accuracy, stable performance. It can be used in environmental monitoring, medical, biological engineering, agricultural weather station, cold chain transportation, mushroom room, gas drainage pipeline monitoring, chemical industry, petroleum, metallurgy, oil depot, liquefied gas station, painting operation, gas transmission and distribution.
The sensor has analog and digital signal output interface, which is suitable for various environmental measurement such as industrial field or laboratory
Quantity requirement. It can directly output the gas concentration value signal with linearization and temperature compensation, which is easier to use.
| Operating temperature | -40℃ ~ +70℃ |
| Storage temperature | -40℃ ~ +85℃ |
| Humidity range | 0 ~ 95%RH(no condensate) |
| Life | 3~7 years |
| Long-term zero drift | <±1%F.S per month (charged state) |
