Product Details:
|
| Detection Range: | 0-100% O2 | Operating Temperature: | 5 ~ 40℃ |
|---|---|---|---|
| Storage Temperature: | -20 ~ +60℃ | ||
| Highlight: | NOx Oxygen Gas Sensor,H2S Oxygen Gas Sensor,CO2 Oxygen Gas Sensor |
||

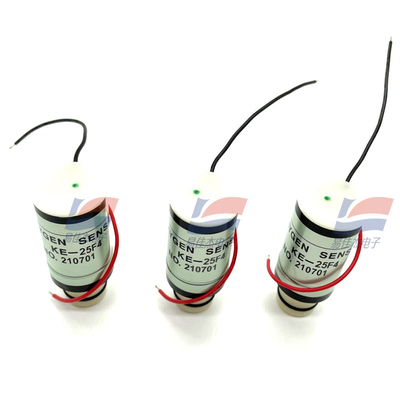

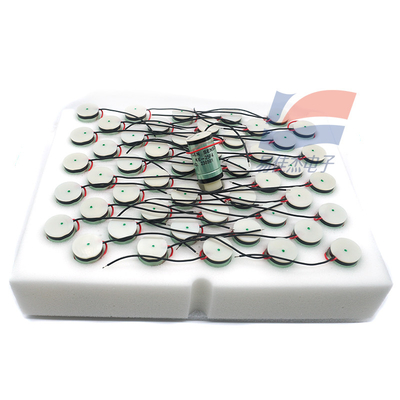

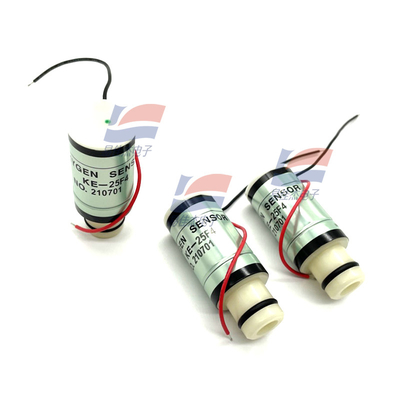

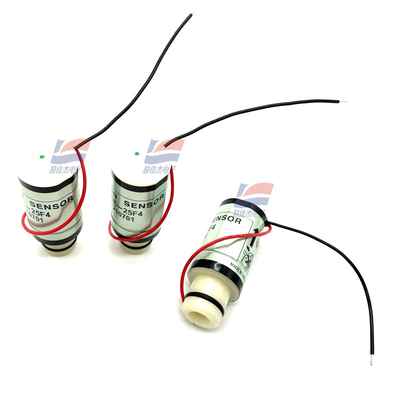

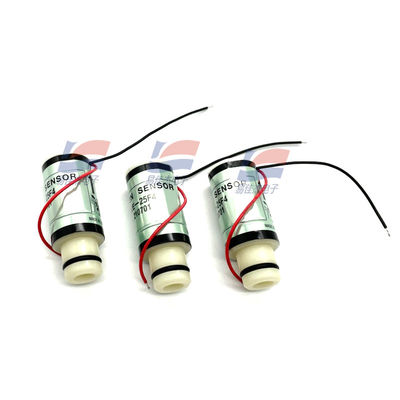

KE-25F4 Electrochemical Oxygen Gas Sensor For Gas Oxygen Analyzer long-life Not Affected By CO2 CO H2S NOx H2 Low Cost
roduct features:
(1) Long life
(2) Not affected by CO2, CO, H2S, NOx, H2
(3) Low cost
(4) Work at room temperature
(5) Signal output is stable
(6) No external power supply is required
(7) No heating is required
Product performance:
(1) Detection range 0-100% O2
(2) Accuracy KE-12: ± 1% (full range); KE-25 & KE-25F3: ± 1% (full range); KE-50: ± 2% (full range)
(3) Operating temperature 5 ~ 40℃
(4) Storage temperature -20 ~ +60℃
(5) Response time KE-12:5 ±1 second; KE-25& KE-25F3:14±2 seconds; KE-50:60 ±5 seconds
(6) Output KE-12:19.0-35.0mV in the air; KE-25& KE-25F3:10.0-15.5mV; KE-50:47.0-65.0 mv
(7) Life expectancy KE-12:2.5 years; KE-25& KE-25F3:5 years; KE- 50:10 years
