Product Details:
|
| Supply Voltage (Vs): | Supply Voltage (Vs) | Supply Current (ls): | <7.5mA (streaming One Sample Per Second), <20mA Peak |
|---|---|---|---|
| Output Type: | 3.3V TTL Level RS232 | Temperature Operating: | -30°C To +60°C |
| Humidity: | 0—99% Rh (non-condensing) | Barometric Pressure Range: | 500—1200mbar |
| Highlight: | LuminOx O2 Sensors |
||

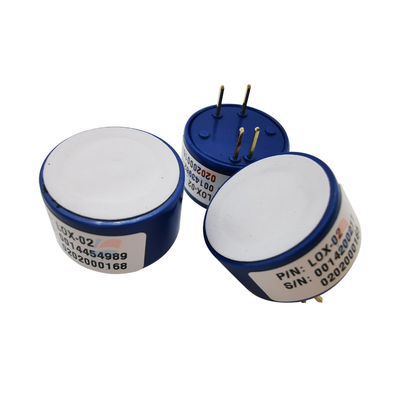

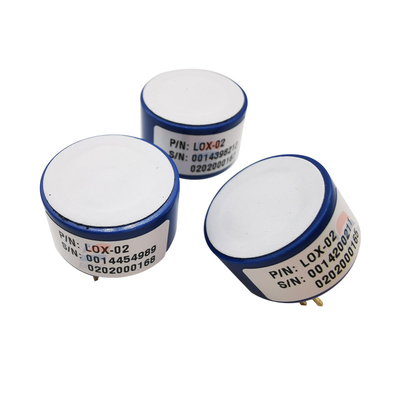

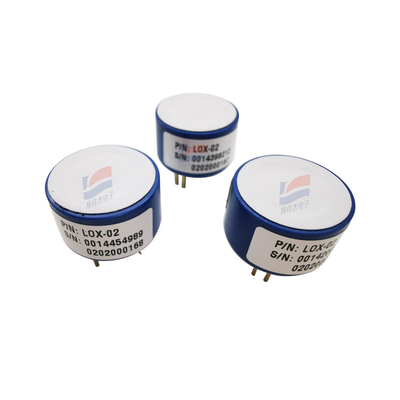

LOX-02 LuminOx O2 Sensors Fluorescence-based Optical Series Fluorescence–based Optical Technology NOT Electrochemical
FEATURES:
Fluorescence–based optical technology, NOT electrochemical
Contains no hazardous materials; RoHS & REACH compliant
Connects directly to the microcontroller without anyadditional circuitry
Factory calibrated
High accuracy
Maintenance free1
BENEFITS:
Low cost
Low power, long life due to non-depleting sensing principle
Compact footprint
| Oxygen range (LOX-02) | 0—25% O2 |
| Oxygen pressure range | 0—300mbar ppO2 |
| Response time | T90 < 30s (typical) |
| Accuracy ppO2 | < 2% FS |
| Pressure (LOX-02) | ±5mbar |
