Product Details:
|
| Sensor Type: | Galvanic Cell (lead-oxygen Battery) Using Patented Weak Acid Electrolyte | Measurement Range: | 0-100% Oxygen |
|---|---|---|---|
| Output Voltage: | Temperature Compensated And Linear Over Full Scale 13 ± 3mV In Air At 23 °C (± 1 °C), 60 ± 5% RH, And 1,000mB | Response Time: | < 15 Seconds For 90% Response < 25 Seconds For 97% Response |
| Accuracy: | ± 2.0% Full Scale Over Operating Temperature Range | Sample Port: | M16 X 1 Threaded Port W/BUNA-N O-Ring |
| Highlight: | Weak Acid Electrolyte Oxygen Sensor,Ambient Air Monitoring Oxygen Sensor,Emissions Testing Oxygen Sensor |
||

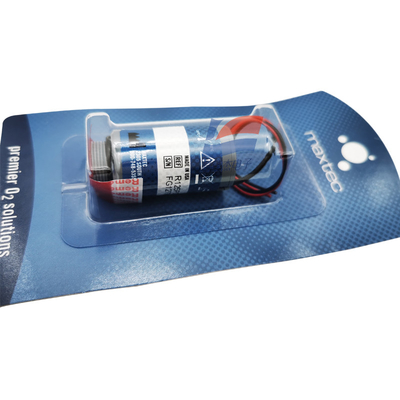

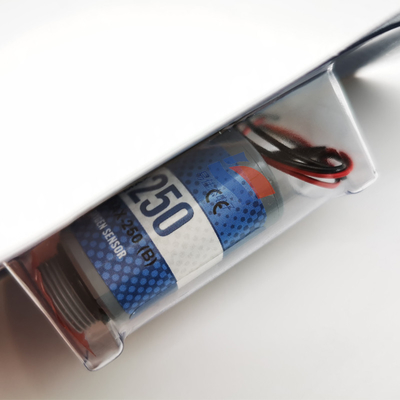

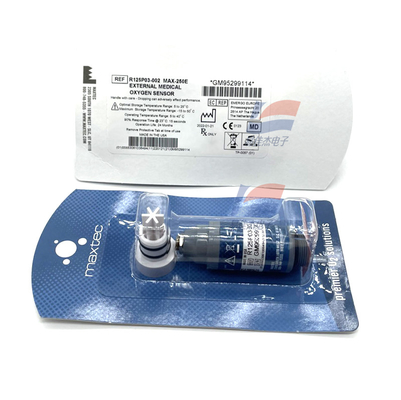

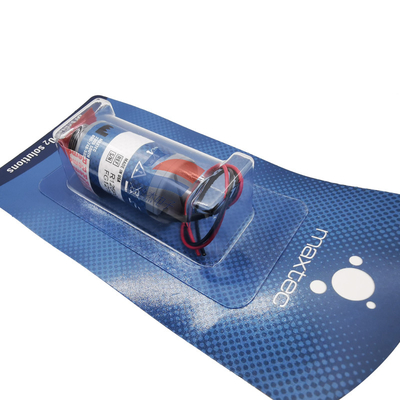

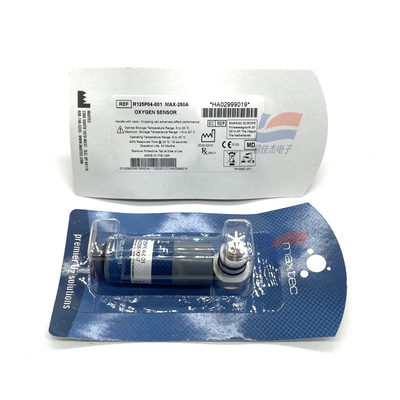

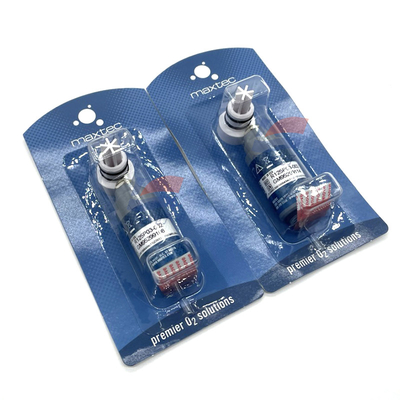

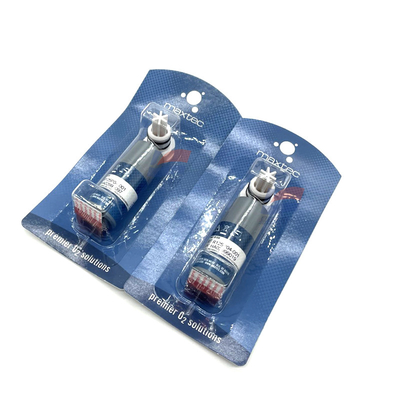

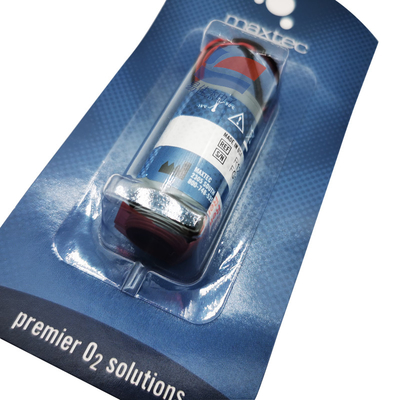

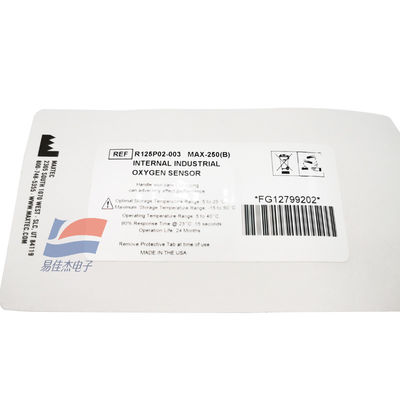

MAX250B New Motion Stable Weak Acid Electrolyte Oxygen Sensor For Emissions Testing Gas Blending & Ambient Air Monitoring Applications
BENEFITS:
• Stable Signal
• Ideal for portable instruments
• Extra-Life, 900,000 O2 % hrs
• Safe, Non-Caustic Electrolyte
• Unaffected by acid gases including
• CO, CO2, and NOx
APPLICATIONS:
• Combustion Efficiency Analysis
• Gas Blending
• Breathing Apparatus – SCUBA
• Compost Monitoring
• Food Storage Monitoring
| Life | 900,000 oxygen % hours |
| Warranty | 24 months from date of shipment under normal operating conditions (contact manufacturer for specific requirements) |
| Pressure Effect | Continuous use in pressure range from 0.5 atm to 1.5 atm Sensor output to be linear with partial pressure of oxygen within ± 2% of full scale |
