Product Details:
|
| Operating Principle: | 3-electrode Electrochemical | Measurement Range: | 0-500 Ppm CO |
|---|---|---|---|
| Maximum Overload: | 1500 Ppm CO | Sensitivity*: | 0.045 ± 0.01 μA/ppm |
| T50 Response Time*: | <10 Seconds At 20°C | Typical T90 Response Time: | 15 To 20 Seconds |
| Highlight: | MICROceL CF Carbon Monoxide Sensor |
||

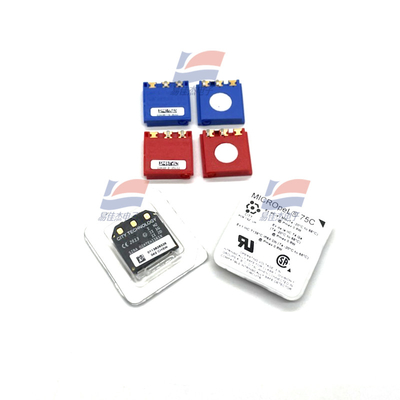

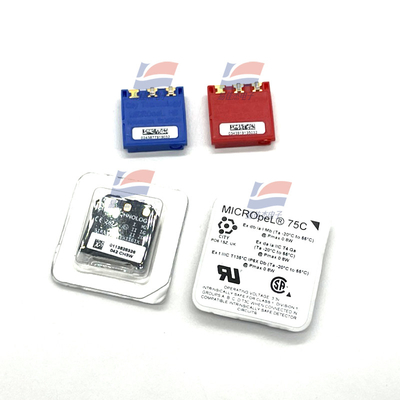

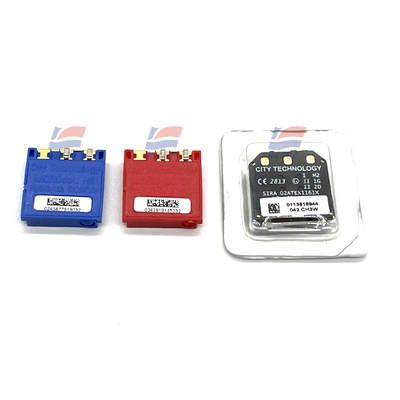

MICROceL CF Carbon Monoxide Sensor Part Number: ABU01-U0W A Robust Carbon Monoxide Sensor Suitable For Portable Life Safety Applications
Key Features & Benefits:
• A robust carbon monoxide sensor suitable for portable life safety applications
• Extremely small size
IMPORTANT NOTE:
Connection should be made via PCB sockets
only. Soldering to the pins will seriously damage
your sensor and invalidate the warranty
| Linearity | Linear up to 1500 ppm CO |
| Recommended Load Resistor | 10 Ω |
| Bias Voltage | Not Required |
| Weight | 1.2 g |
| Housing Material | ABS |
| Operating Temperature Range | -40°C to +50°C |
| Recommended Storage Temp | 0°C to 20°C |
| Operating Pressure Range | Atmospheric ± 10% |
