Product Details:
|
| Operating Principle: | 3-electrode Electrochemical | Measurement Range: | 0-100 Ppm H2S |
|---|---|---|---|
| Maximum Overload: | 1000 Ppm H2S | Sensitivity: | 0.105 ± 0.025 μA/ppm |
| T50 Response Time: | T50 Response Time | Typical T90 Response Time: | 25 To 40 Seconds |
| Highlight: | MICROceL HS Hydrogen Sulfide Sensor |
||

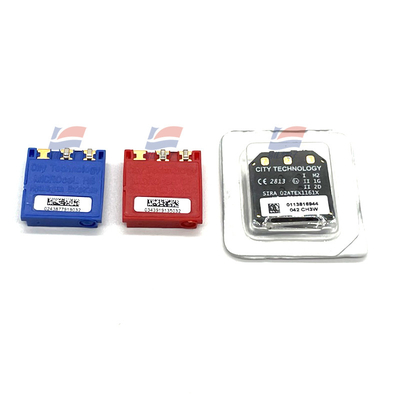

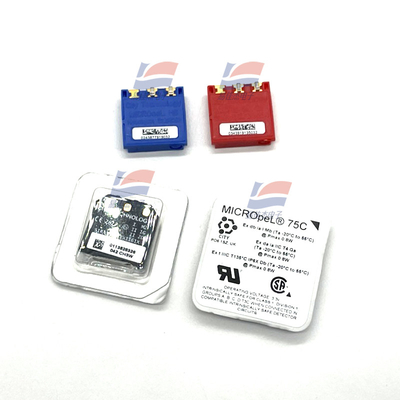

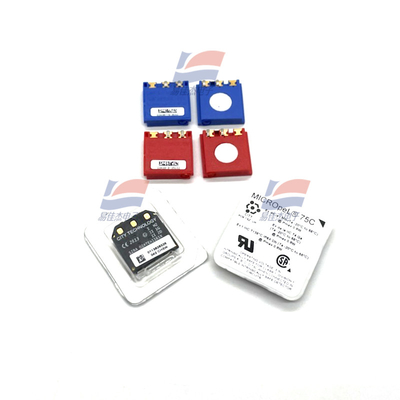

MICROceL HS Hydrogen Sulfide Sensor Part Number: ACU01-U00 A Robust Hydrogen Sulfide Sensor Suitable For Portable Life Safety Applications
Key Features & Benefits:
• A robust hydrogen sulfide sensor suitable for portable life safety applications
• Extremely small size
IMPORTANT NOTE:
Connection should be made via PCB sockets
only. Soldering to the pins will seriously damage
your sensor and invalidate the warranty.
| Operating Temperature Range | -40°C to +50°C |
| Recommended Storage Temp | 0°C to 20°C |
| Operating Pressure Range | Atmospheric ± 10% |
| Operating Humidity Range | 15 - 90% RH non-condensing |
| Expected Operating Life | Two years in air |
