Product Details:
|
| Sensor Type: | MEMS | Standard Encapsulation: | Ceramic |
|---|---|---|---|
| Detection Gas: | H2S & Benzene Etc | Detection Range: | 0.5~50ppm (H2S) |
| Loop Voltage: | ≤24V DC | Heater Voltage: | 1.9V±0.1V AC Or DC |
| Highlight: | Portable H2S Gas Sensor |
||

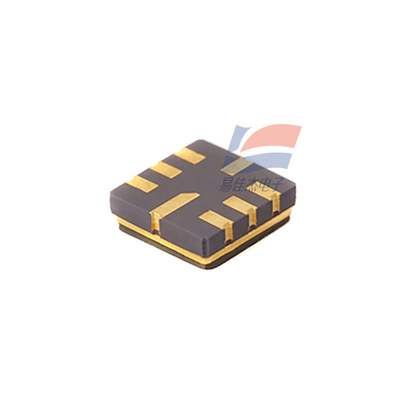

GM-602B MEMS H2S Gas Sensor High Sensitivity To H2S Gases Small Sizes And Low Power Consumption Portable And Fixed Type Hydrogen Sulfide Monitor And H2S Detector
Product description:
MEMS H2S gas sensor is using MEMS micro-fabrication hot plate on a Si substrate base, gas-sensitive materials used in the clean air with low conductivity metal oxide semiconductor material. When the sensor exposed to gas atmosphere, the conductivity is changing as the detected gas concentration in the air. The higher the concentration of the gas, the higher the conductivity. Use simple circuit can convert the change of conductivity of the gas concentration corresponding to the output signal.
Character:
MEMS technology, Strong construction High sensitivity to H2S gases Small sizes and low power consumption Fast response and resume Simple drive circuit, Long lifespan
Application :
Portable and fixed type hydrogen sulfide monitor, and H2S detector
| Heater consumption | ≤40mW |
| sensitive materials resistance | 1KΩ～30KΩ(in 50ppmH2S ) |
| Sensitivity | R0(in air)/Rs(in 50ppmH2S)≥3 |
