YJJ NAP-505 Carbon Monoxide Sensor CO Alarm For Homes Fire Alarm

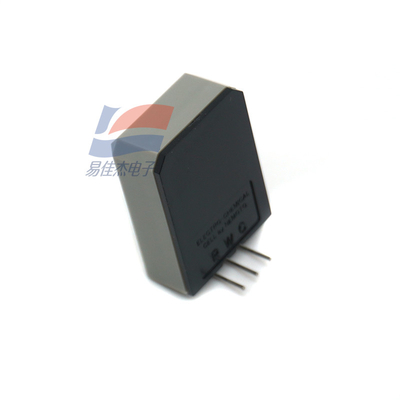

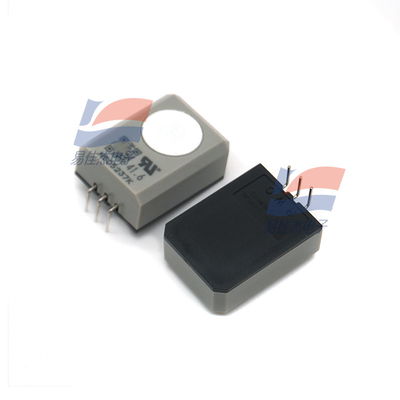

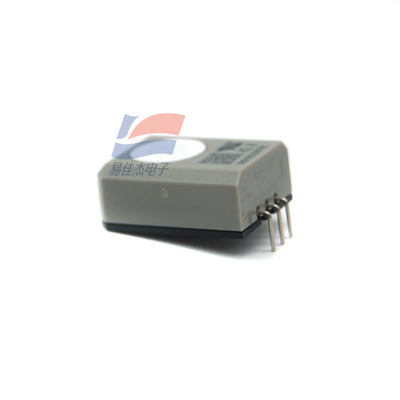

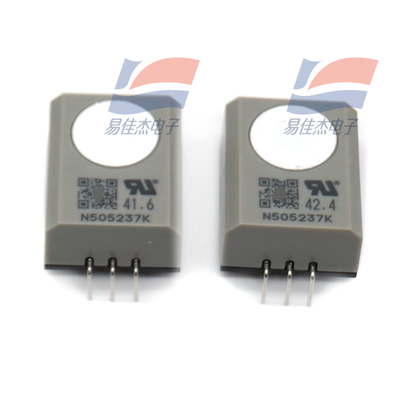

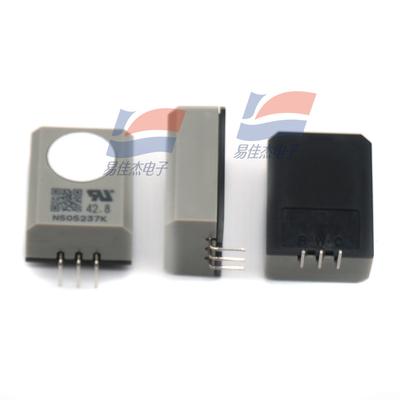

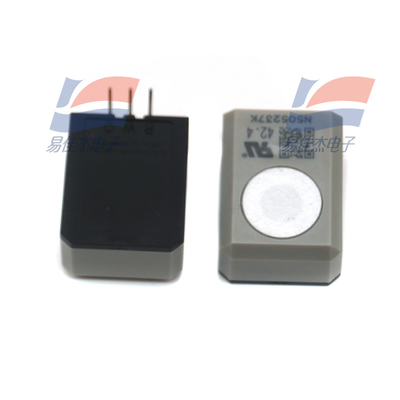

Large Image : YJJ NAP-505 Carbon Monoxide Sensor CO Alarm For Homes Fire Alarm

Product Details:

Place of Origin:	Japan
Brand Name:	NEMOTO
Model Number:	NAP-505

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Disk mounting
Delivery Time:	3 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2200

Contact Now

YJJ NAP-505 Carbon Monoxide Sensor CO Alarm For Homes Fire Alarm

Description

Repeatability:

Less Than ±2%

Spacing Drift:

Less Than 5%/ Year

Reaction Time:

T90: Less Than 30 Seconds

Service Life:

Usually 5 Years

Highlight:

Homes Carbon Monoxide Sensor

Fire Alarm Carbon Monoxide Sensor

Product Description:

NAP-505 Carbon Monoxide Sensor CO Alarm For Homes Fire Alarm

Features:

Product parameters:

Detect gas concentration range

CO 0 ~ 1,000ppm

Zero drift

Less than 10ppm(-20~50℃)

Output current

40 ± 10nA/ppm CO

Ambient temperature and humidity

-20~50℃, 15-90%RH

repeatability

Less than ±2%

Spacing drift

Less than 5%/ year

Reaction time

T90: Less than 30 seconds

Service life

Usually 5 years

Specifications:

Less than	10ppm(-20~50℃)
Ambient temperature and humidity	-20~50℃, 15-90%RH
Less than	±2%
Spacing	drift

YJJ NAP-505 Carbon Monoxide Sensor CO Alarm For Homes Fire Alarm 0
