Product Details:
|
| Determination Of Concentration Rang: | 0-100%LEL, 0-50%LEL (good Linearity) | Sensitivity: | 13-18 MV 30-+ 30 MV In Clean Air |
|---|---|---|---|
| Standard Gas Concentration And Output Value In Clean Air At Normal Temperature Methane: | 10%LEL | Packing: | Tray |
| Highlight: | Paired Contact Gas Sensor,Flammable Gas Sensor,Combustion Flammable Gas Sensor |
||
Product Description:

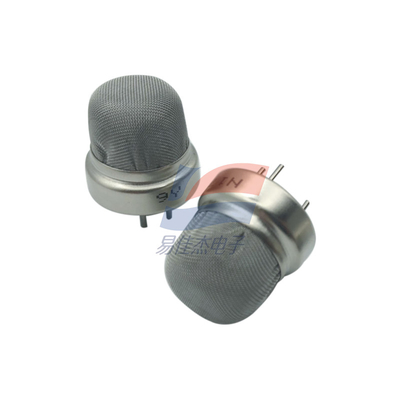

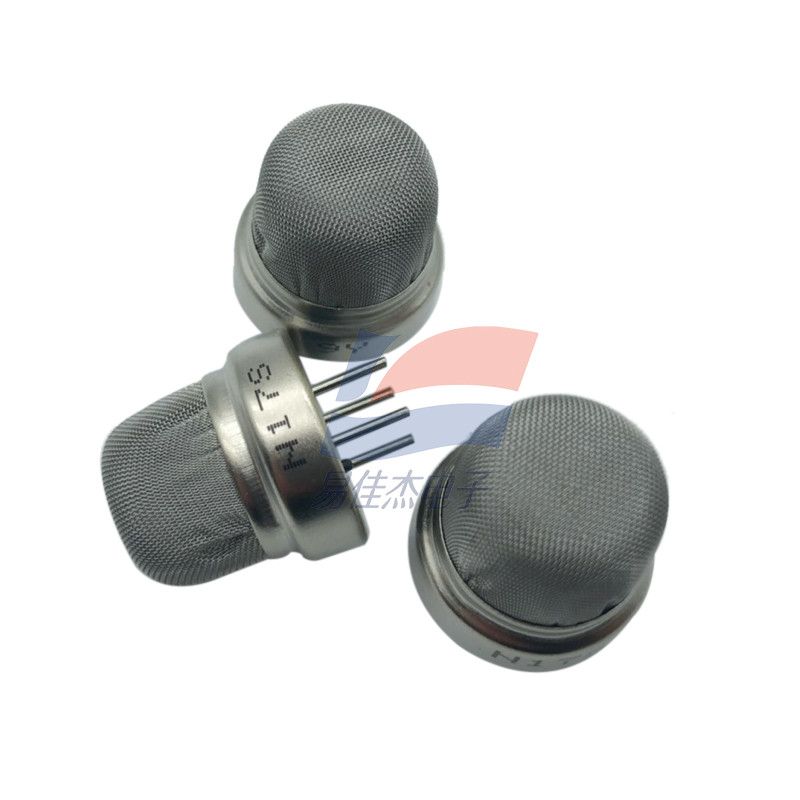

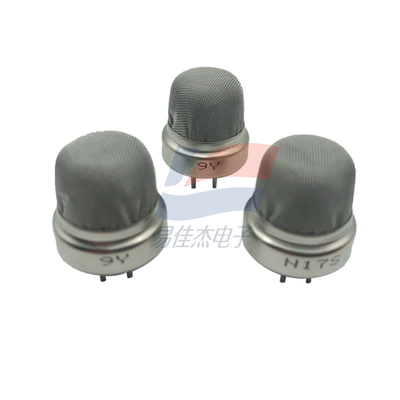

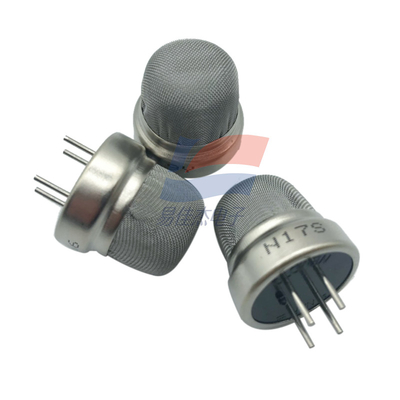

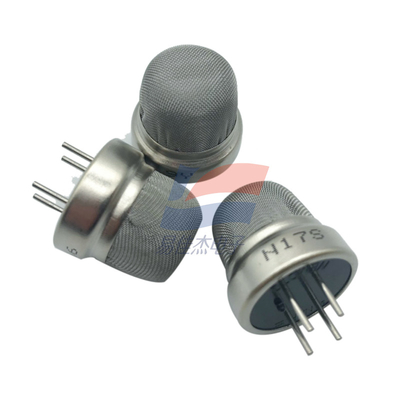

NCP-170 Paired Contact Combustion Flammable Gas Sensor
Features:
NCP-170 is a paired contact combustion type flammable gas sensor in a stationary alarm
And concentration meter and other fields have been selected by many customers.
Japan NEMOTO Combustible Gas sensor NCP-170 Description:
The NCP-170 is a paired contact combustion flammable gas sensor that has been used by many customers in the field of stationary alarms and concentration meters. But, this sensor since
The body is not explosion-proof and is recommended to be placed in a container with an explosion-proof certificate.
rated
Voltage 2.0v
Current 160-190 mA (2.0V)
The ambient temperature is -20 - +60C
Ambient humidity below 95%RH (no condensation)
Determination of concentration range 0-100%LEL, 0-50%LEL (good linearity)
Standard gas concentration and output value in clean air at normal temperature
Methane 10%LEL sensitivity 13-18 mV
30-+ 30 mV in clean air
Specifications:
| Voltage | 2V |
| Current | 160-190 mA (2.0V) |
| Ambient temperature is | -20 - +60C |
| Ambient humidity below | 95%RH (no condensation) |
