Product Details:
|
| Long-term Stability: | < 2% Signal Value/month | Operating Temperature: | -20 ℃to 50 ℃ |
|---|---|---|---|
| Operating Humidity: | 15 To 90%RH | Working Pressure: | 90 To 110 KPa |
| Bias Voltage: | 0 MV | ||
| Highlight: | NE4-H2S-100 Electrochemical Hydrogen Sulfide Sensor,Electrochemical H2S Sensor |
||
Product Description:

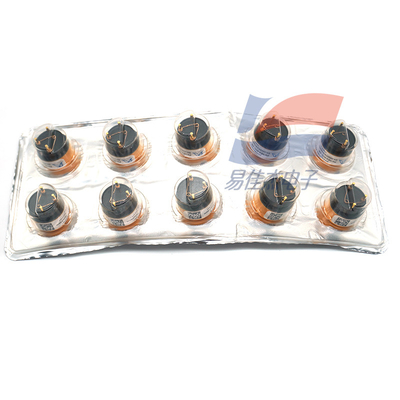

Electrochemical Hydrogen Sulfide Sensor (H2S) NE4-H2S-100
Features:
NE-H2S is a hydrogen sulfide gas sensor for industrial applications. In addition to the standard models (H2S-100, H2S-200 and H2S-500), three other models described on the next page are also available. Users can choose the most suitable model according to their application. The output current is very large, which means that it can detect relatively low concentrations of hydrogen sulfide, and the sensor has good selectivity, resistance and repeatability, so it can be used in a wide range of fields.
Range 0 to 100 ppm
Maximum load 500 ppm
Sensitivity 0.8 ± 0.2 mA/ppmBaseline (20 ℃) < ± 0.4 mA
Baseline drift is equivalent to 0 to 0.2 ppm
(-20 to 50 ℃)Resolution 0.1ppm
Response time (T90) £20 seconds
linearity
Long-term stability < 2% signal value/month
Working condition
Operating temperature -20 ℃to 50 ℃
Operating humidity 15 to 90%RH (non-condensing)
Working pressure 90 to 110 kPa
Bias voltage 0 mV
Storage time 6 months (special packing box)Storage temperature 0 ℃ to 20 ℃
Service life 2 years in the air
Warranty period 18 months after delivery
Specifications:
| Measuring the output voltage |
HS 0-100 ppm500 + 100 nA /ppm Within 2% |
| concentration range | 0.1ppm |
| Response time | 90% response time less than 30 seconds |
| Temperature range | -20- +50℃ |
