Product Details:
|
| Repeatability: | Less Than 2% | Output Voltage: | 400 ~ 80 NA /ppm |
|---|---|---|---|
| Temperature Range: | Within 4 Ppm (20-+40℃) | Temperature Characteristics Of Zero: | NO 0-250 Ppm |
| Highlight: | YJJ NO Gas Sensor |
||
Product Description:

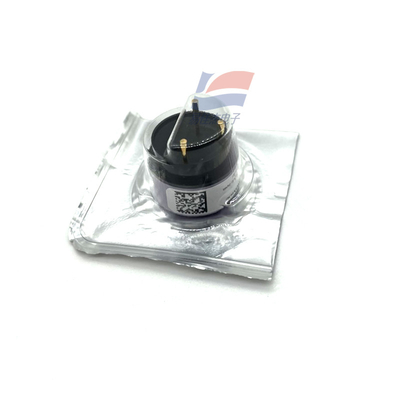

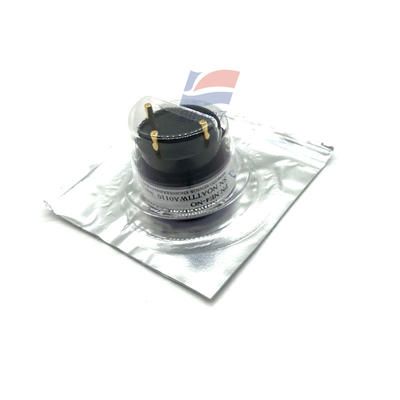

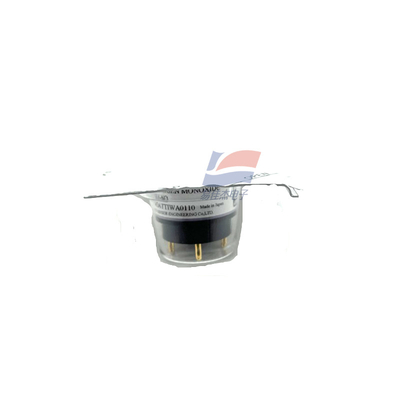

NE4-NO Nitric Oxide NO Gas Sensor For Portable Gas Detectors
Features:
Nitric Oxide (NO) Sensor Overview:
NO emission detection: electric fire plant, chemical plant, metallurgical extraction, coal extraction, original petroleum processing and other industries, need to use CEMS flue gas analyzer.
NE4-N0 is an electrochemical nitric oxide gas sensor. N0 gas is detected by converting nitrogen oxides. Because the output current is large, the low concentration of NOx can also achieve high-precision detection. In addition, it has good repeatability, long-term stability and durability, suitable for many occasions.
peculiarity
Item concentration range: NO 0-250 ppm
Output voltage: 400 ~ 80 nA /ppm
Repeatability: less than 2%
Detection limit: 0.5ppm
Response time: 90% response time less than 40 seconds
Temperature characteristics of zero: NO 0-250 ppm
Temperature range: within 4 ppm (20-+40℃)
Specifications:
| Measuring the output voltage | 400 ~ 80 nA /ppm |
| concentration range | NO 0-250 ppm |
| Response time | 90% response time less than 40 seconds |
| Temperature range | -30°C to +50°C |
