Product Details:
|
| General Range: | 0~ 1,000ppm | Overload Maximum Range: | 1,500ppm |
|---|---|---|---|
| Output Current: | 95±15 NA/ppm | Consistent Current Output Value In The Same Day: | ± 2% |
| Output Value In Clean Atmosphere (baseline): | <±10 Ppm | ||
| Highlight: | Long Life Electrochemical CO Sensors |
||
Product Description:

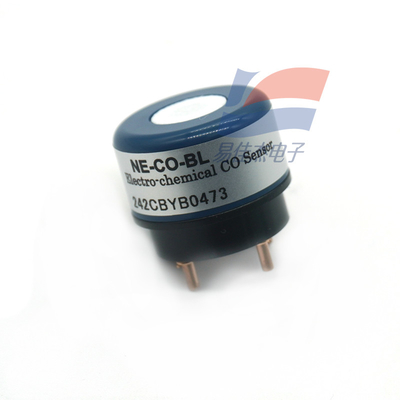

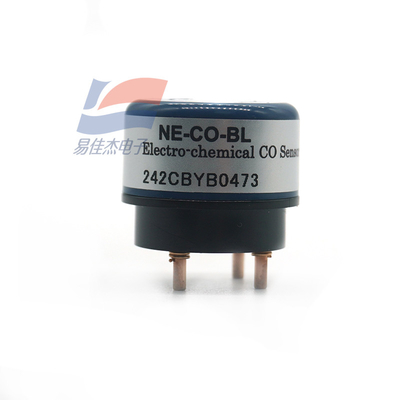

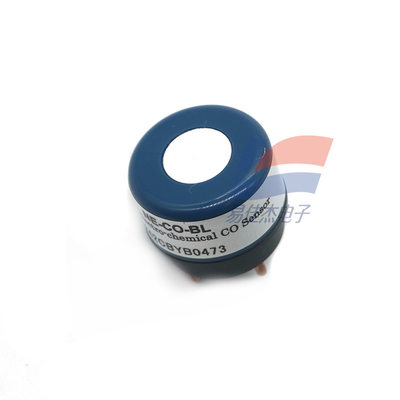

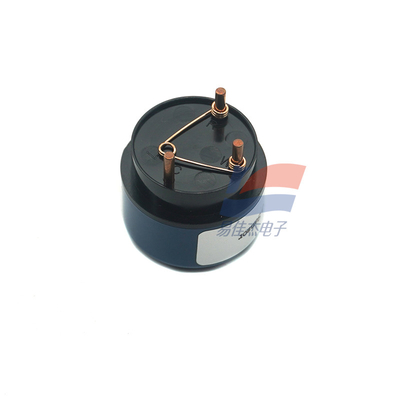

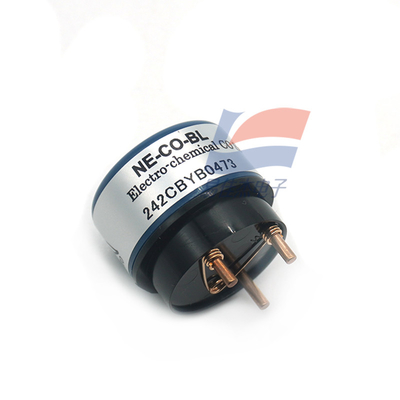

NE-CO-BL NE4-CO-BL Electrochemical CO Sensors Have Long Life And Low Power Consumption
Features:
Good responsiveness and high output current.
Handle complex gases with ease.
Excellent linearity.
Long life and good stability.
Durable in complex environments.
Detection gas: CO
General range :0~ 1,000ppm
Overload maximum range :1,500ppm
Output current :95±15 nA/ppm
Consistent current output value in the same day :± 2%
Output value in clean atmosphere (baseline):<±10 ppm
90% reaction time :<25 seconds (CO: 100ppm)
Zero drift (-20 ~ 50℃) :<10 ppm
Long-term stability :<5% / year
Design life: more than 2 years
Conditions of use]
Operating environment: -20 ~50℃ 15~ 90% RH 1atm± 10%
Recommended resistance :10Ω
Bias: No need
Installation direction difference: None
Storage environment :0~20℃
Maximum storage period :6 months
Specifications:
| Measuring the output voltage | 1500ppm |
| concentration range | 0~ 1,000ppm |
| Output current | 95±15 nA/ppm |
| Long-term stability | <5% / year |
