Product Details:
|
| Operating Temperature Range: | -40 To +55℃ | Operating Humidity Range: | 15-95%RH. Non-condensing |
|---|---|---|---|
| Working Pressure Range: | 800 To 1200 HPa | Storage Temperature Range: | 0 To 20℃ |
| Working Principle: | Abe, Three Electrodes | ||
| Highlight: | 100ppm Electrochemical Carbon Monoxide Sensor |
||
Product Description:

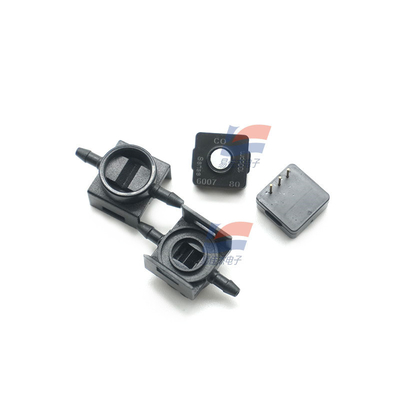

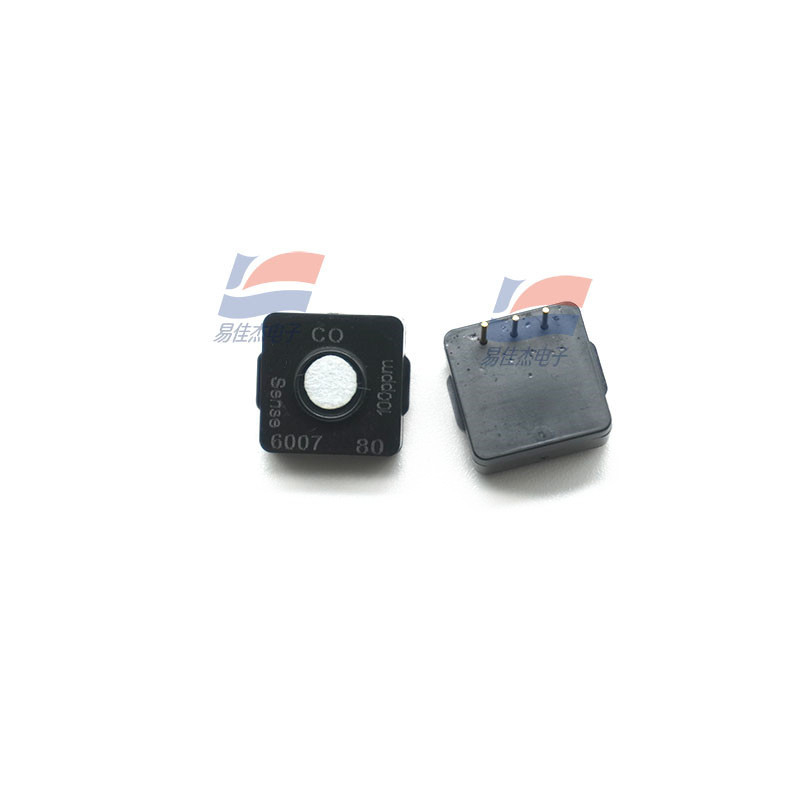

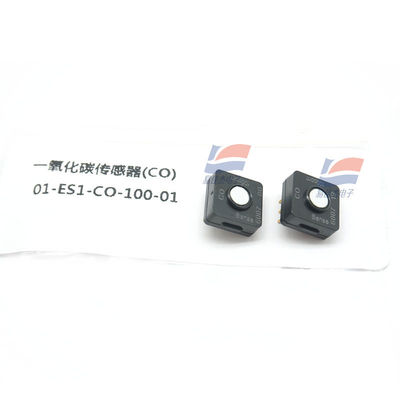

ES1 Three-electrode Electrochemical Carbon Monoxide Sensor ES1-CO-100ppm
Features:
Highly selective detection of a wide range of gases
· Long life > 5 years
· No poisoning, no leakage
· Typical warm-up time (in seconds)
· Fast response time
· nA power consumption
· Linear output
· No zero line drift
· Excellent zero line noise = better signal-to-noise ratio
· Wide temperature range from -40°C to +55°C
· Excellent low temperature sensitivity
· Small size
· Comply with RoHS standards
Gas sensor performance parameters
Specifications:
| sensitivity | 30 nA/ppm ± 15 nA/ppm |
| Zero current | ± 100 nA |
| range | 0-100ppm |
| Overload limit | 1000ppm |
