Product Details:
|
| Material: | Corrosion-resistant ABS Material, RoHS Compliant | Adaptive Gas Sensor: | ES1 Series Gas Sensor |
|---|---|---|---|
| Adaptive Gas Sensor Module: | TB600, TB600B, TB600C TB200B-ES1 TB420-ES1 CDS10-ES1 | Inner Diameter: | 2mm |
| Outer Diameter: | 4mm | ||
| Highlight: | YJJ ES1 Gas Sensor,ES1 Gas Sensor Flow Hood,YJJ Gas Sensor Flow Hood |
||
Product Description:

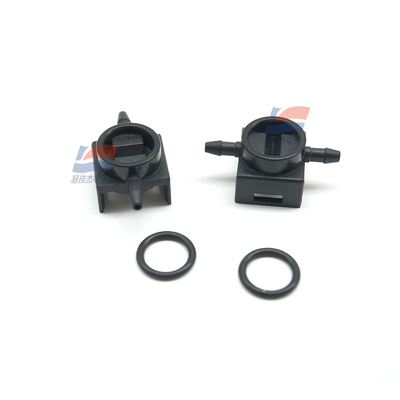

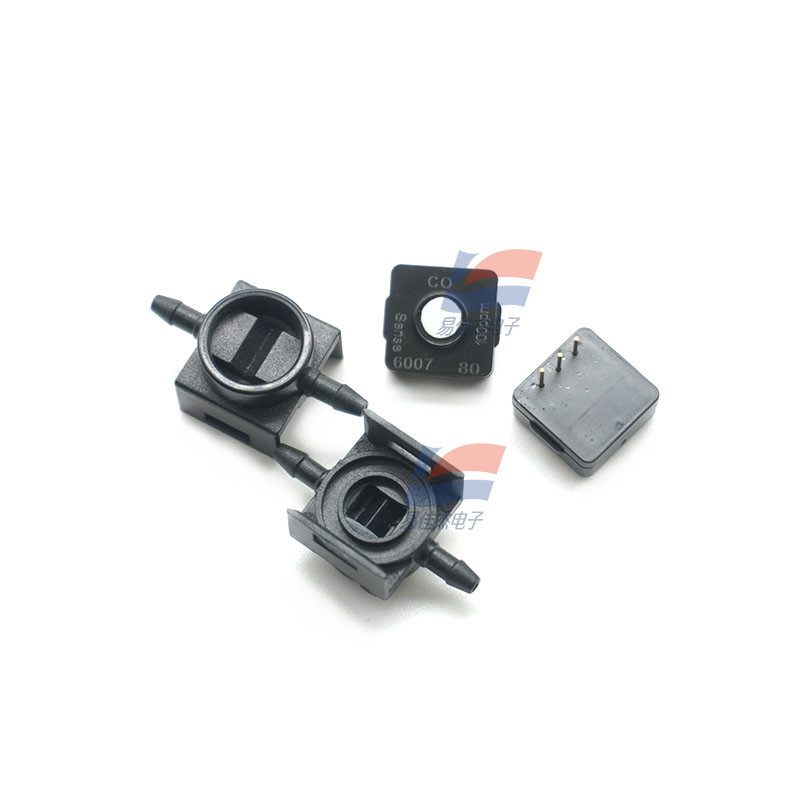

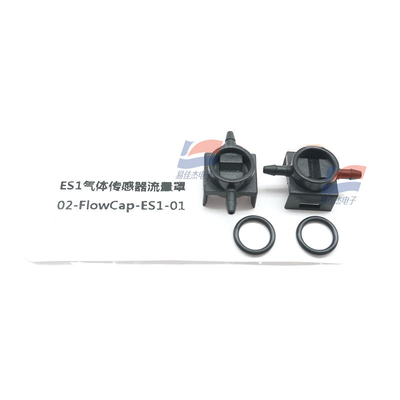

ES1 Gas Sensor Flow Hood
Features:
Made of corrosion-resistant ABS material by injection molding, the structure is compact, and the overall coordination is very good when combined with ES1 sensor
· Small volume internal space structure, fitted with sensor design
· For the structure of ES1 sensor, the double-sided bayoness design is adopted to ensure that the bottom does not fall off, and at the same time, the force of the top sealing ring is uniform to ensure the tightness
· The gas path barrier design can not only avoid the direct impact of the gas sensor by the measured gas, but also ensure that the measured gas can quickly contact the gas sensor to ensure the response speed to the gas
· The cross-section size of the gas passage and the volume in the flow hood are determined by scientific calculation in combination with the gas sampling area of the ES1 sensor, and the applicable flow range is wide
· Because the whole channel occupies less gas, it can be used in series
Specifications:
| dimension | Length x width x Height: 25.6 x 13.8 x 11.2(mm) |
| weight | 2.8 g |
| range | 0-100ppm |
| Overload limit | 1000ppm |
