Product Details:
|
| Range: | 0 ~ 30% | Maximum Load: | 90% |
|---|---|---|---|
| Output Signal: | -85±20uA In Air | Base Line: | -10~5uA |
| Highlight: | 30% Oxygen Sensor |
||
Product Description:

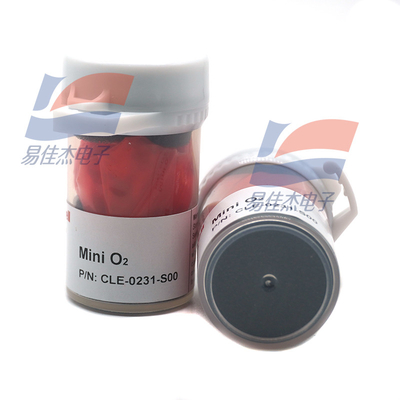

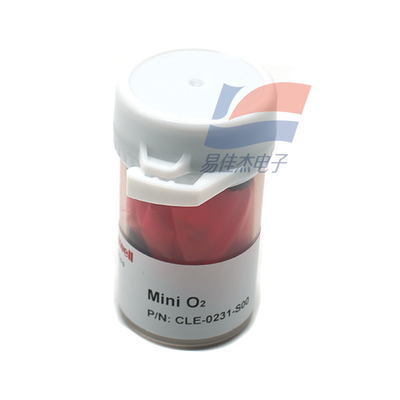

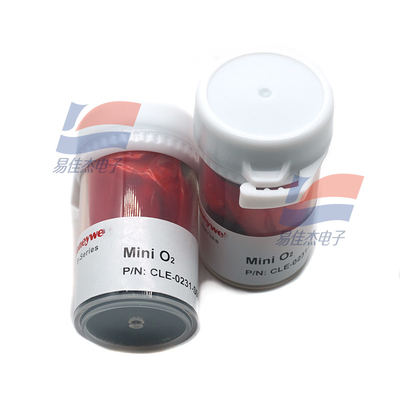

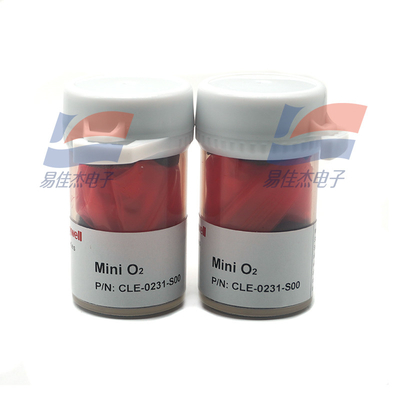

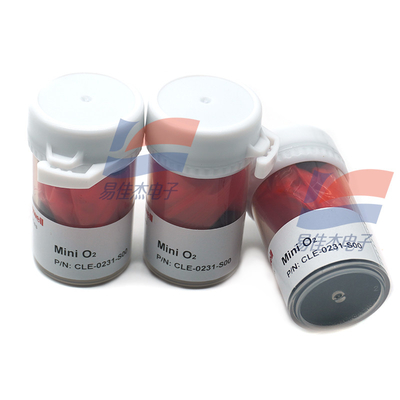

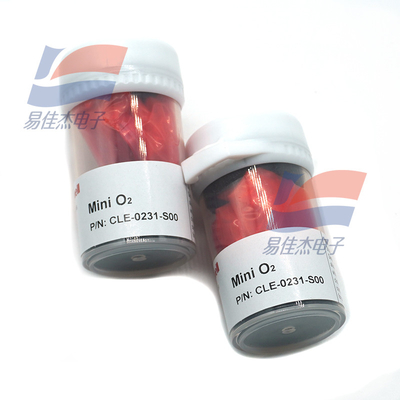

MINI O2 CLE-0231-S00 0~30% Oxygen Sensor Over 2 Years Life
Features:
Performance characterization
Product model
range
Maximum load
Output signal
Base line
Resolution
Response time (T90)
linearity
Long-term stability
CLE-0231-S00
0 to 30% Oz
90% mouth z
-85 + 20 yA in air
-10~ 5μA (ammonia)
0.1% 0z
S15 seconds
linearity
<2% signal value for 13 months
Working condition
Operating temperature
-20 °C to 50 C
Working coverage
5 to 90%RH(non-condensing)
Working pressure
80 to 120 kPa
Bias voltage
-600 mV
Storage time
6 months (in special box)
Storage temperature
0°C to 20 ℃℃
Service life
In the air for 2 years
麺 Warranty period
12 months after delivery
Physical property
weight
Bearing requirement
About 1 gram
No
Specifications:
| Resolution | 0.1% |
| Response time | ≤15s |
| Operating temperature | -20 ~50 °C |
| Working humidity | 5 ~ 90% |
