Product Details:
|
| Gas Type Can Be Detected: | Gas | Precision: | 0.5ppm |
|---|---|---|---|
| Output Type: | Numeric Type | Operating Temperature: | 20 ℃ |
| Supply Voltage: | 1V | ||
| Highlight: | Electrochemical NH3 Gas Sensor,YJJ NH3 Gas Sensor |
||
Product Description:

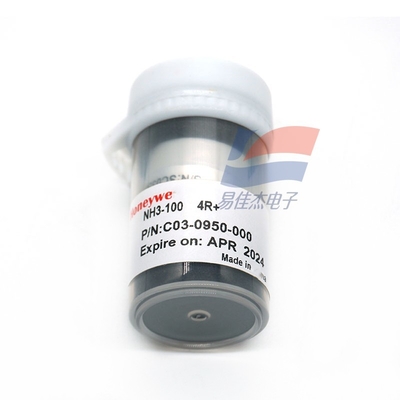

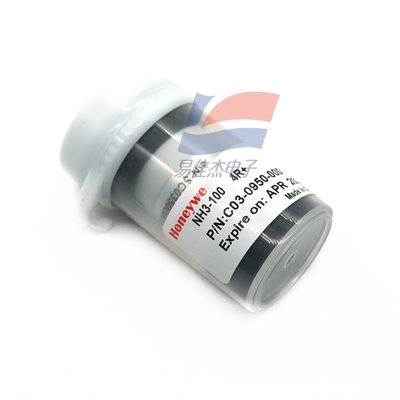

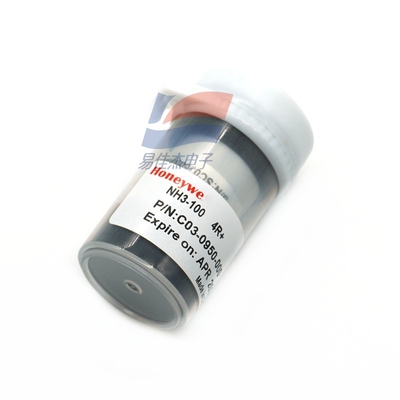

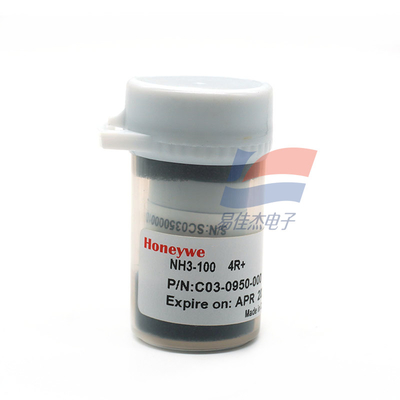

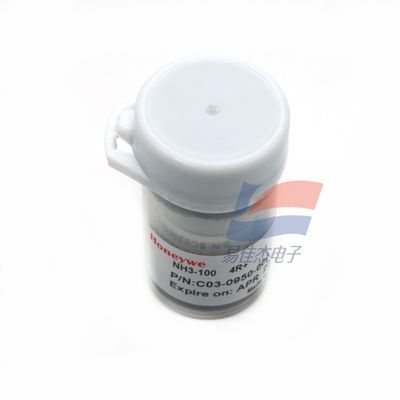

NH3-100 4R+ C03-0950-000 Electrochemical NH3 Gas Sensor Gas Detector
Features:
This product is used to measure the concentration of ammonia gas and can replace the standard four-series ammonia electrochemical sensor through the pin.
Performance parameter
Measuring range 0 ~ 100 ppm
Load 200 ppm
Sensitivity (20℃) 0.135 ± 0.035 μA/ppm
Response time (T90) ≤ 90 s
Baseline (20℃) <±0.4 μA
Baseline drift (-40℃ ~ 50℃) <2 ppm
Resolution 0.5ppm
linearity
Bias voltage 0 Mv
Specifications:
| Resolution | 0.5ppm |
| Response time | ≤15s |
| Operating temperature | -20 ~50 °C |
| Bias voltage | 0 Mv |
