Product Details:
|
| Packaging: | Boxed | Minimum Packing Quantity: | One |
|---|---|---|---|
| Measurement Object: | Gas | Precision: | 1% |
| Highlight: | YJJ 4OL Oxygen Detector,Electrochemical Gas Sensor Oxygen Detector |
||
Product Description:

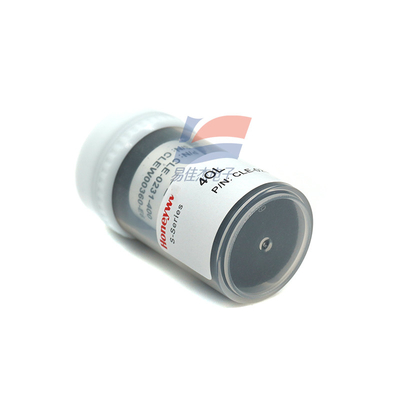

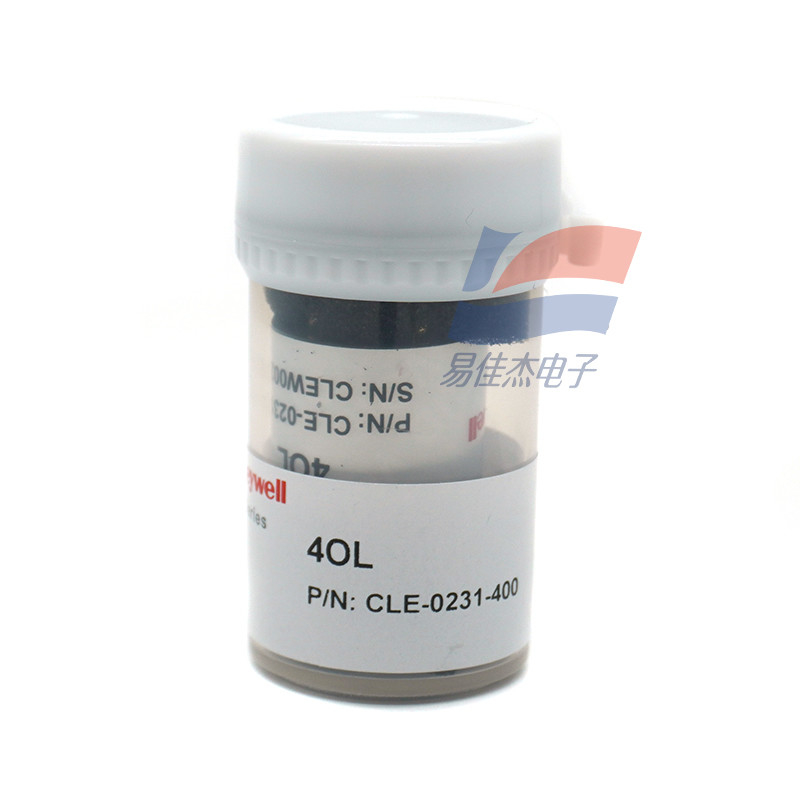

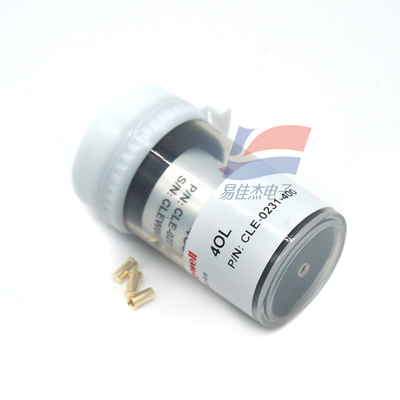

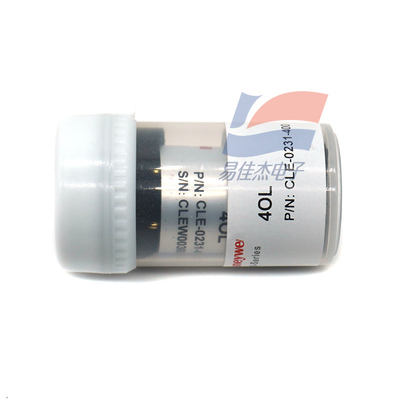

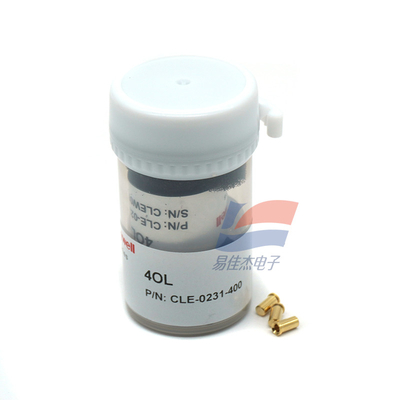

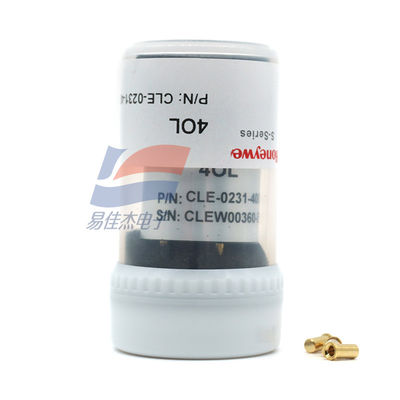

4OL CLE-0231-400 O2 Electrochemical Gas Sensor Oxygen Detector
Features:
Product type CLE-0231-400
Measuring range 0 to 30% O2
Load 90% O2
Output signal 350 ± 50 μA in air
Baseline <20 μa (nitrogen)
Resolution 0.1% O2
Response time (T90) £30 seconds
linearity
Long-term stability <2% signal value /3 months
Working condition
Operating temperature -20 ℃ to 50 ℃
Operating Humidity 5 to 90%RH (non-condensing)
Working pressure 80 to 120 kPa
Bias voltage -600 mV
Storage time 6 months (in the box)
Storage temperature 0 ℃ to 20 ℃
Service life 2 years in the air
18 months after delivery
Physical property
It weighs about 5 grams
Azimuth requirement None
Specifications:
| Working temperature | - 20-100 |
| Ambient temperature | 0 to 40 |
| Accuracy | 2.5 mm |
| Indication error | 0.1% |
