Product Details:
|
| Product Description： 3LEL 2.3V CLL-6112-300 Electrochemical Combustible Gas Sensor 0-100% LEL Featur: | 0-100%LEL | Detection Gas: | 22+8 MV/%CH4 |
|---|---|---|---|
| Range: | <20 Seconds (methane) | Sensitivity: | 0-75%LEL |
| Response Time (T90): | <+5% Signal Value/month | Linearity: | <±5%LEL / Month |
| Highlight: | 2.3V Electrochemical Combustible Gas Sensor |
||
Product Description:

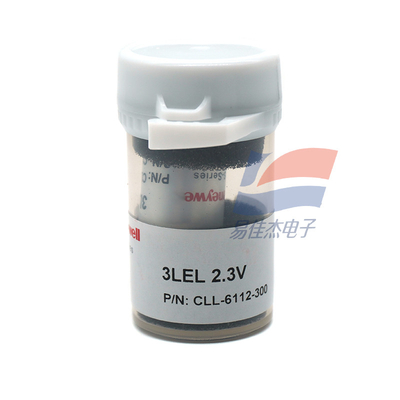

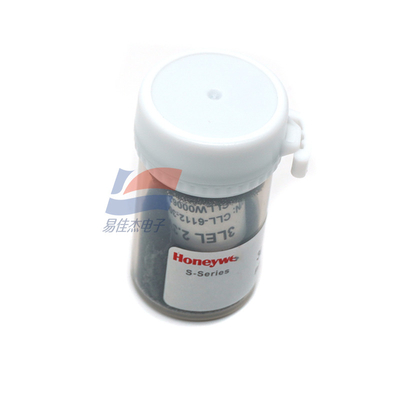

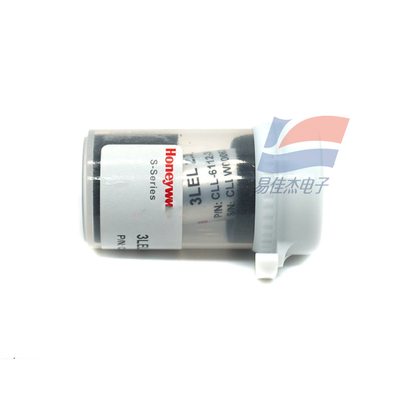

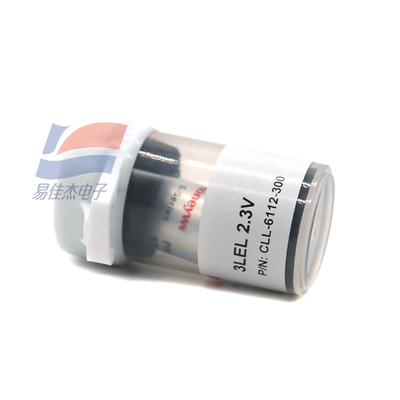

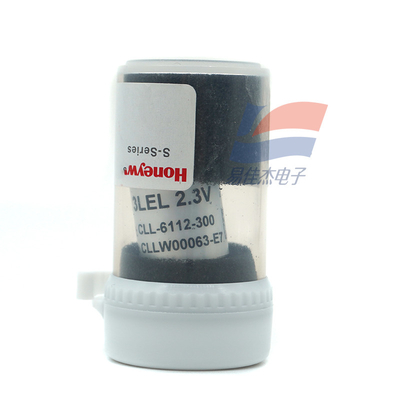

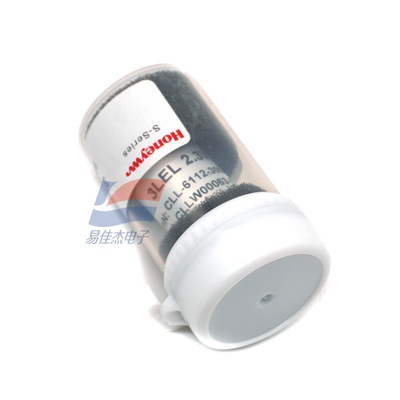

3LEL 2.3V CLL-6112-300 Electrochemical Combustible Gas Sensor 0-100% LEL
Features:
Performance Characteristics
Part Number CLL-6112-300
Gas Detected Most combustible gases and vapors
Nominal Range 0- LEL
Sensitivity Range 357 mV/%CH4
T90 Response Time <20 seconds (methane)
Linear to 0-75%LEL
Long Term Sensitivity Drift
<±5%fss/monthLong Term Zero Drift <±5%lelmethane/month
Warranty Period 12 months
Operation Conditions
Temperature Range -20oC to 50oC
Operating Humidity 15-90%RH non-condensing
Operating Voltage 4.25V D.C.
Operating Current 75±8 mA
Storage no Si,Pb, Sn and S etc.vapors allowedExcellent long term stability
Excellent H2S poison resistance
Product Approval
UL
Class I, Division I, Groups A, B, C & D Hazardous Locations
Certificate No: E187829
ATEX(94/9/EC)
II 2G Ex d IIC
Certificate No: DEMKO 03 ATEX 0311958U
Certificate No: 03 ATEX 0311958U
IECEx
Ex d IICCertificate No: IECEx UL 07.0001U
Ex ia IIC T4 Ga or Ex ia I Ma
Certificate No: IECEx KEM 08.0030U
Specifications:
| Working temperature | - 20-100 |
| Ambient temperature | 0 to 40 |
| Accuracy | 2.5 mm |
| Indication error | 0.1% |
