Product Details:
|
| Product Model: | CLE-0231-S00 | Measuring Range: | 0 To 30% O2 |
|---|---|---|---|
| Maximum Load: | 90% O2 | Output Signal: | -85 ± 20 μA In Air |
| Baseline: | -10 ~ 5μA (Nitrogen) | Resolution: | 0.1% O2 |
| Highlight: | Classic Line Mini O2 Sensor,0~30% Mini O2 Sensor,30% Mini O2 Sensor |
||

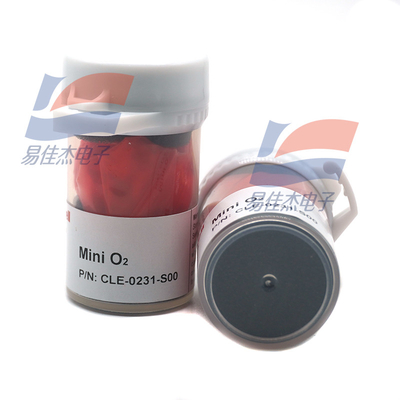

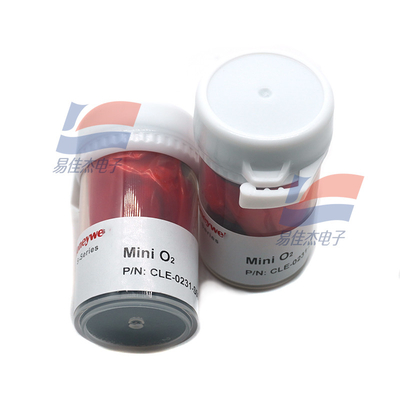

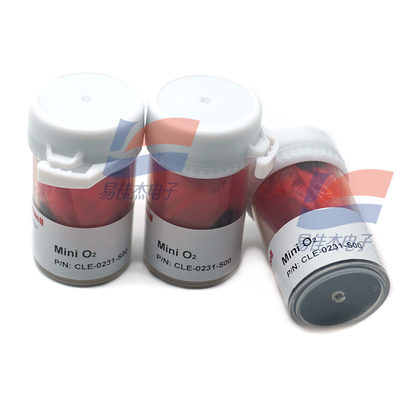

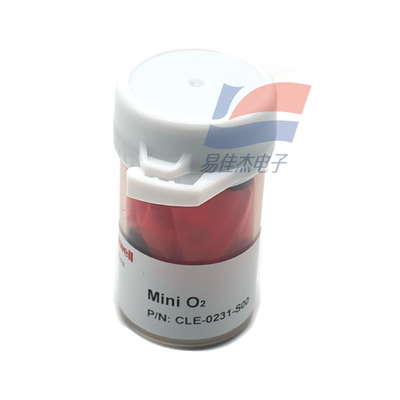

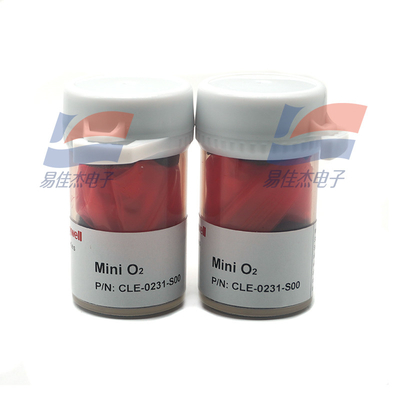

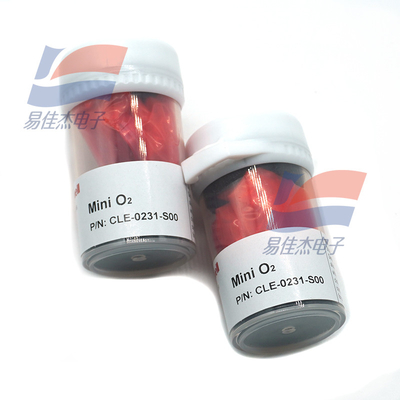

MINI O2 CLE-0231-S00 Classic Line Mini O2 Sensor Oxygen Gas Sensor 0~30% Live More Than 2 Years
Performance characterization:
Response time: (T90) ≤ 15 seconds linearity
Long-term stability: < 2% signal value /3 months
Working conditions:
Operating temperature: -20 ℃to 50 ℃
Operating humidity: 5 to 90%RH (non-condensing)
Working pressure: 80 to 120 kPa
Bias: -600 mV
Storage time: 6 months (in special box)
| Storage temperature | 0 ℃to 20 ℃ |
| Service life | 2 years in the air |
| Warranty period | 12 months after delivery |
| weighs | about 1 gram |
| Azimuth requirement | None |
