Product Details:
|
| Electrode Stack Colour: | Red | Minimum Detection Limit: | 0.5 Ppb |
|---|---|---|---|
| Range: | >3 Ppm | T90 Response Time (S): | <12 |
| Sensitivity: | >600 MV/ppm | Supply Voltage (using Internal Regulator): | 3.6 - 18 V (non Intrinsically Safe 10 - 18 V) |
| Highlight: | Semiconductor Fabrication Infrared Gas Sensor,MiniPID 2 Infrared Gas Sensor,MiniPID 2 HS Infrared Gas Sensor |
||

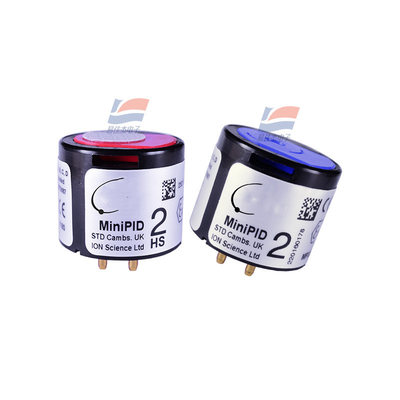

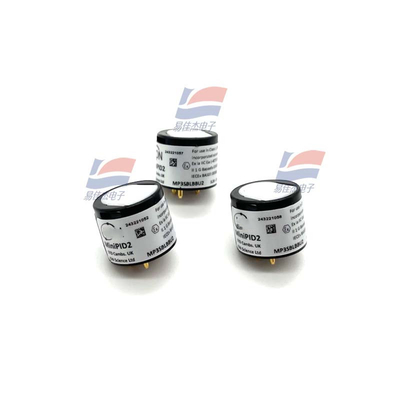

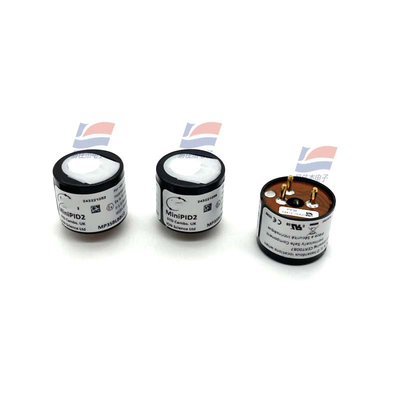

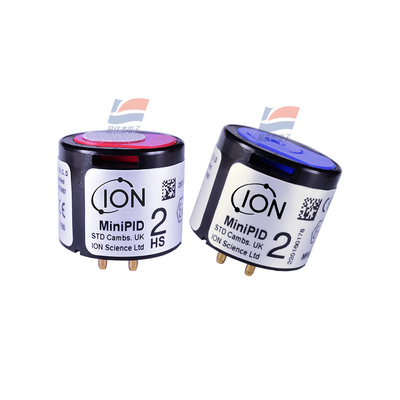

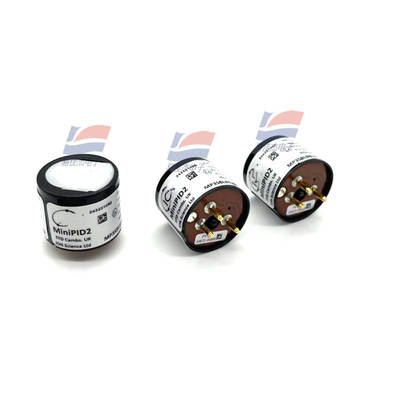

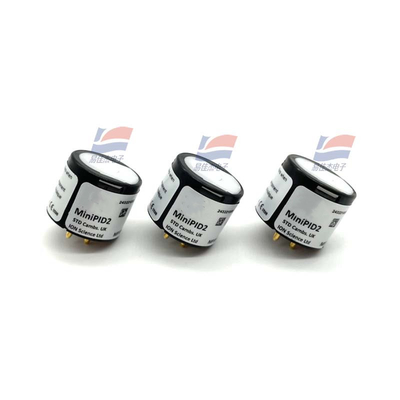

MiniPID 2 MiniPID 2 HS Infrared Gas Sensor OEM Gas Sensor With State Of The Art Sensing Technology For Air Quality Monitoring Semiconductor Fabrication Clean Room Fertility Labs
MiniPID 2 HS is designed to detect VOCs at sub ppb concentrations.
Detection at these levels can be compromised by contamination from
moisture, dust and aerosols. To overcome this, we have developed a
world leading, patent pending, filter to protect the ionisation chamber.
Key Features:
• 0.5 ppb sensitivity
• 10,000 hours continuous lamp life
• Anti-contamination design
• Patent pending filter
• Humidity-resistant
• Serviceable electrode stack and lamp
• Intrinsically safe
Typical Applications:
• Air quality monitoring
• Semiconductor fabrication
• Clean room
• Fertility labs
• Glove boxes
• HVAC
| Current | 20 - 32 mA (130 for 100 ms at start up) |
| Power Consumption | 100 mW at 3.3 V |
| Output Signal (using internal regulator) | 0 - 3.2 V |
| Output Signal (using a regulated power supply) | 0 to rail voltage - 0.1 V |
| Temperature Range | 0 to 40 °C |
