Product Details:
|
| Operation Principle: | 3-Electrode Electrochemical | Nominal Range: | 0 - 100 Ppm |
|---|---|---|---|
| Maximum Overload: | 200 Ppm | Inboard Filter: | To Remove Acidic Gases |
| Output Signal: | 200 ± 80 NA/ppm | Resolution (Electronics Dependent): | < 0.1 Ppm |
| Highlight: | Electrochemistry Carbon Disulfide Gas Sensor |
||

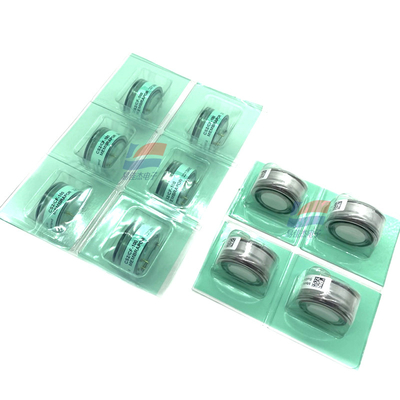

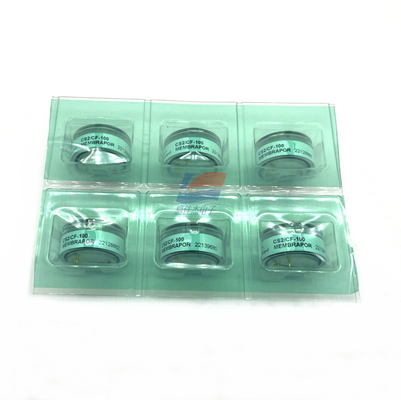

CS2/CF-100 CS2/CF-500 Electrochemistry Carbon Disulfide Gas Sensor Highly Selective And Sensitive CS2 Detection For Discontinuous Measurement
Key Features:
• Highly selective and sensitive CS2 detection
• Ideal for TLV-TWA level measurements
Applications:
• Discontinuous Measurement • Safety and Process Control
| T90 Response Time | < 30 s |
| Typical Baseline Range (pure air, 20°C) | -1 ppm to 1 ppm |
| Maximum Zero Shift (+20°C to +40°C) | see Graph |
| Repeatability | < 2 % of signal |
| Output Linearity | Linear |
