Product Details:
|
| Sensitivity: | -650 ± 200 NA/ppm (negative Current) | Zero Current: | ± 20 NA |
|---|---|---|---|
| Range: | 5 Ppm | Repeatability: | 2 % |
| Lower Detectable Limit (LDL): | ≤ 0.05 Ppm | Resolution (16Bit ADC): | < 0.01 Ppm |
| Maximum Overload: | 10 Ppm | Linear Range: | 5 Ppm |
| Highlight: | Low Temperatures Electrochemical Gas Sensor,High Sensitivity Electrochemical Gas Sensor,Zero Bias Electrochemical Gas Sensor |
||

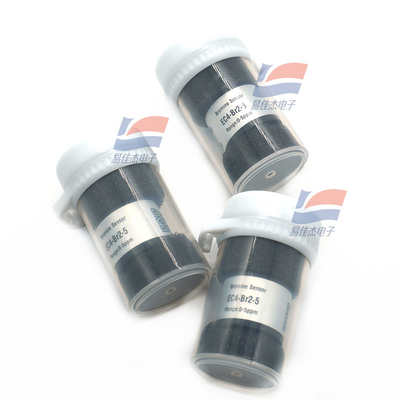

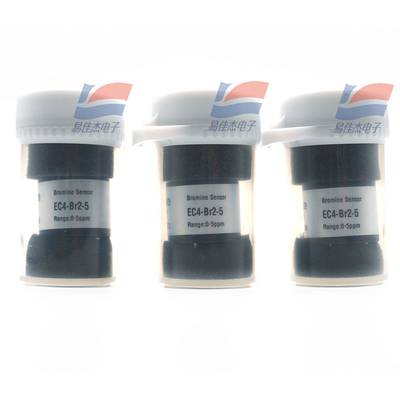

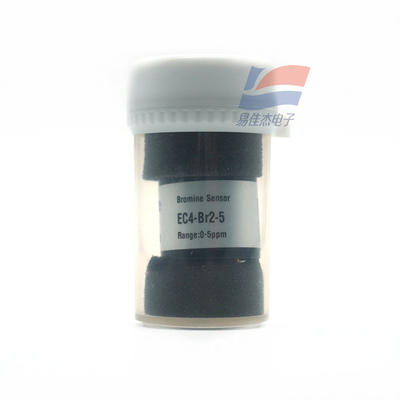

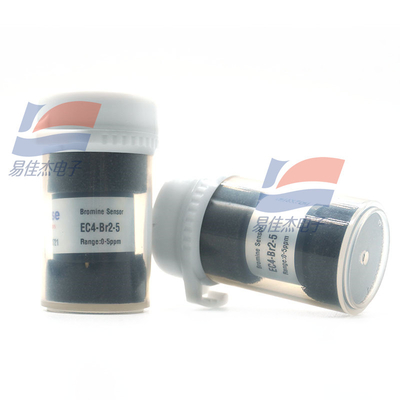

EC4-Br2-5 3 Eletrode Electrochemical Gas Sensor Zero Bias High Sensitivity Excellent Sensitivity At Low Temperatures For Leakage Detection TLV-monitoring General Industry
Features:
• Zero Bias
• High Sensitivity
• High Selectivity
• Excellent Sensitivity at
Low Temperatures
• Stable Zeropoint
• Water Based Electrolyte
• Double Sealed Housing for Advanced Leakage Protection
Typical Applications:
• Leakage Detection
• TLV-monitoring
• General Industry
• Semiconductor Industry
• Emissions
• Industrial Safety
• Environmental Monitoring
• Portable and Fixed
Point Applications
• TLV Monitoring
• Water Treatment Plants, Swimming Pools, Chemical Industry
| Temperature Range | -20 to 40°C |
| Humidity Range (non condensing) | 10 to 90 % R.H |
| Pressure Range | 800 to 1200hPa |
| Operating principle | amperometric |
| Bias voltage | 0 mV |
| Recommended load resistor | 220 Ω |
| Warm up time | < 60 s |
| Long Term Sensitivity Drift | < 1 %/month |
