Product Details:
|
| Output Signal: | -30℃ To +50℃ | Typical Baseline Range: | 800 To 1200 Mbar |
|---|---|---|---|
| T90 Response Time: | 15% To 90% RH | Range: | 15 ± 5 NA / Ppm |
| Maximum Overload: | <±10 Ppm CO Equivalent | ||
| Highlight: | Gas Detectors Carbon Monoxide Sensor |
||
Product Description:

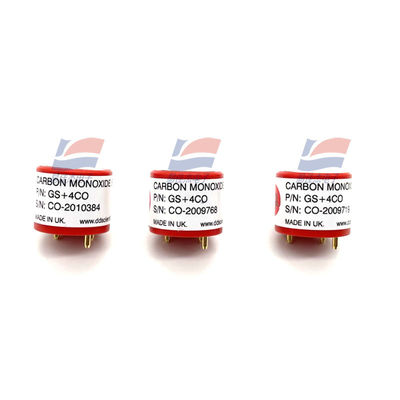

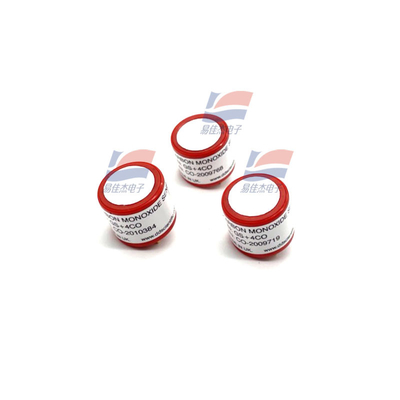

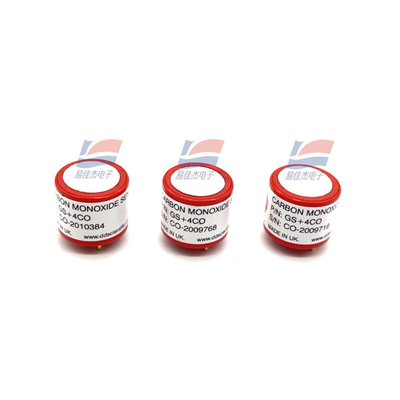

GS+4COF-M High-performance Electrochemical Carbon Monoxide Sensor For Gas Detectors
Features:
Output signal: 15 ± 5 nA/ppm
Typical baseline range: <±10 ppm CO equivalent
T90 Response time: < 30 seconds
Range: 0-40,000 ppm
Maximum overload: 10,000 ppm
< 30 seconds
Linear: Linear
Repeatability: < ±1% CO equivalent
Recommended load resistance: 10 ohms
Resolution (depending on electronic device) : < 1 ppm
Continuous operating temperature: -30℃ to +50℃
Pressure range: 800 to 1200 mbar
Humidity range: 15% to 90% RH
Specifications:
| Long-term output drift | < 5% per year |
| Recommended storage temperature | 0℃ to 20℃ |
| Life expectancy (in air) | > 48 months |
| Filter life | >30,000 ppm hours vs. NO |
