Product Details:
|
| Sensitivity: | 45 ± 10 NA / Ppm | Zero Current: | ± 20 NA |
|---|---|---|---|
| Repeatability: | 1 % | Lower Detectable Limit (LDL): | ≤ 1 Ppm |
| Resolution (16Bit ADC): | 0.1 Ppm | Maximum Overload: | 200PPM |
| Highlight: | Low Cost Gas Sensor,Solid Polymer Technology Gas Sensor,Water Treatment Plants Gas Sensor |
||

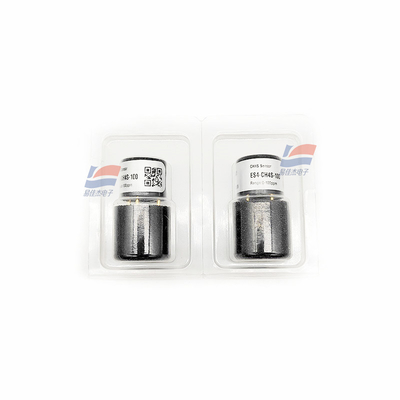

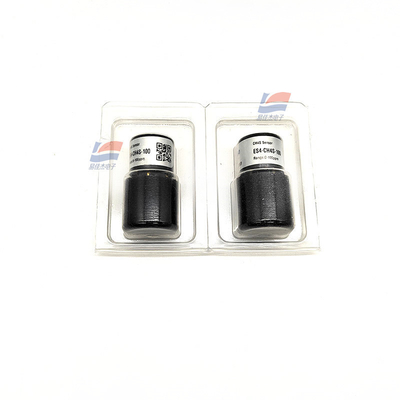

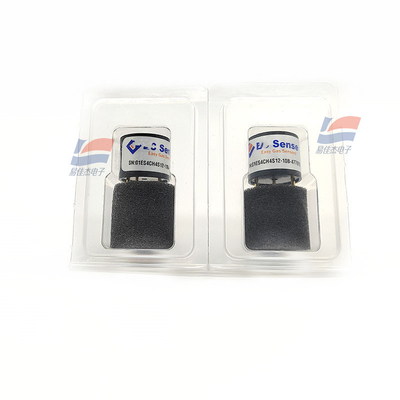

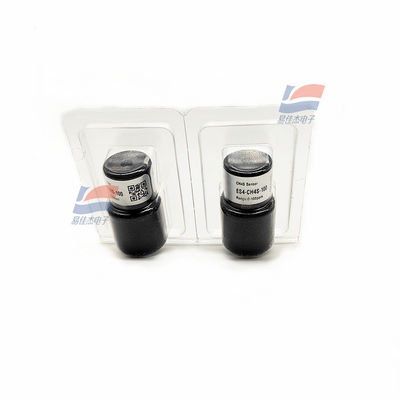

ES4-CH4S-100 ES4-CH4S-500 Methyl Mercaptan Gas Sensor Solid Polymer Technology Extreme Linear Response Up To High Concentration Low Cost At Large Volumes For Water Treatment Plants
Features;
• Extreme Linear Response Up to High Concentration
• Low Noise
• Short Warm Up Time
• No Electrolyte Leakage
• Low Cost at Large Volumes
• Fast Response
• Individually Calibrated Including Test Report
Typical Applications:
• Water Treatment Plants
• Biogas Applications
• Portable & Fixed Point Applications
• Leakage Detection
| Temperature Range | -40 to 50 °C |
| Humidity Range (non condensing) | 10 to 95 % R.H |
| Pressure Range | 800 to 1200 hPa |
| Operating principle | amperometric, 3-electrode |
| Bias voltage | 0 mV |
