| Operation Principle: | 3-Electrode Electrochemical | Nominal Range: | 0 - 20 Ppm |
|---|---|---|---|
| Maximum Overload: | 40 Ppm | Output Signal: | 2500 ± 600 NA/ppm |
| Resolution (Electronics Dependent): | < 0.05 Ppm | T90 Response Time: | < 100 S |
| Highlight: | Highly Sensitive ETO Gas Sensor,Sterilization Processes ETO Gas Sensor |
||

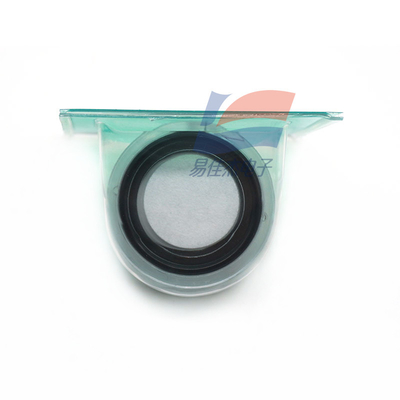

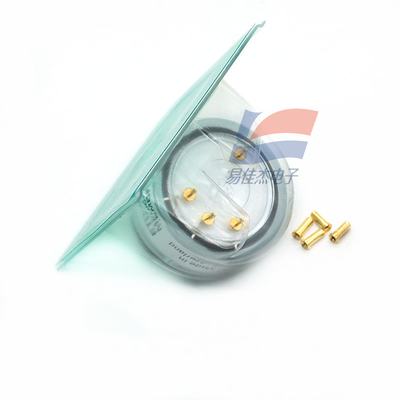

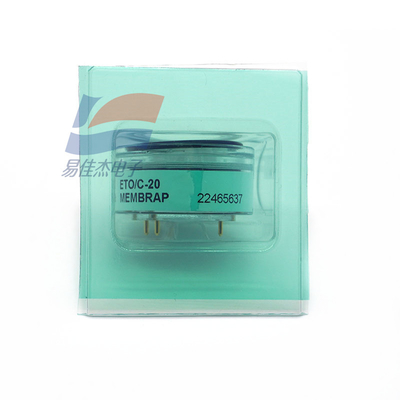

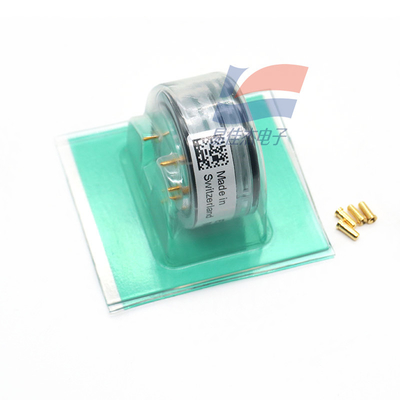

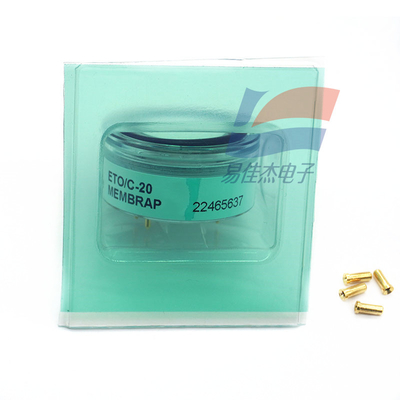

ETO/C-20 ETO/C-100 ETO/C-100 3-Electrode Electrochemical Ethylene Oxide Gas Sensor Highly Sensitive ETO Measurement For Sterilization Processes
Key Features:
• Highly sensitive ETO measurement
Applications:
• Sterilization Processes • Safety and Process Control
| Maximum Zero Shift (+20°C to +40°C) | see Graph |
| Repeatability | < 2 % of signal |
| Output Linearity | Linear |
| Rec. Load Resistor | 10 - 33 Ω |
| Bias (V_Sens-V_Ref) | +300 mV |
| Conformity to RoHS directive | RoHS Compliance |
| Relative Humidity Range | 15 % to 90 % RH non-condensing |
| Temperature Range | -40 °C to 50 °C |
