Product Details:
|
| Measuring Range: | 0–1 Ppm | Sensitivity Range: | 1000 NA/ppm ± 300 NA/ Ppm (negative Current) |
|---|---|---|---|
| Zero Current At 20°C: | < ± 20 NA | Resolution At 20°C: | < 0.02 Ppm |
| Bias Potential: | 0 MV | Linearity: | < 5% Full Scale |
| Highlight: | 1ppm Electrochemical Fluorine Gas Sensor |
||

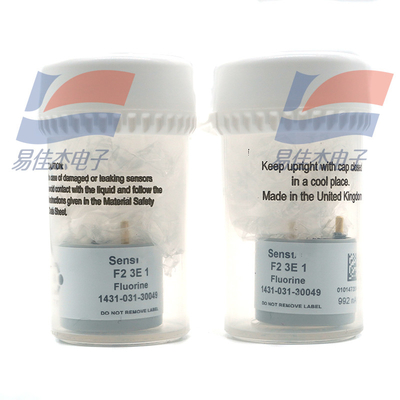

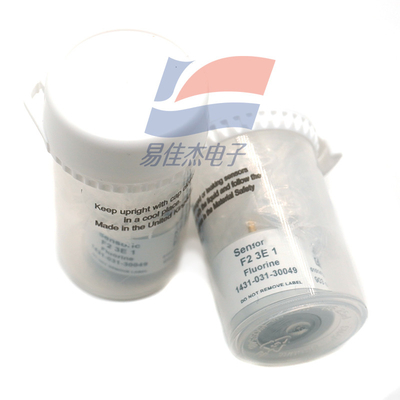

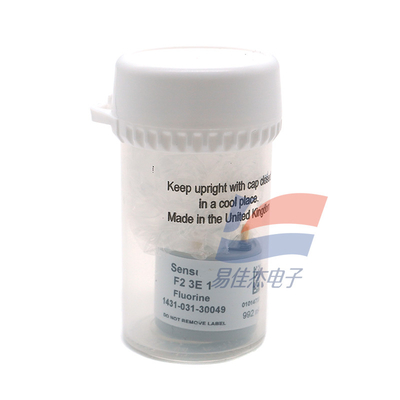

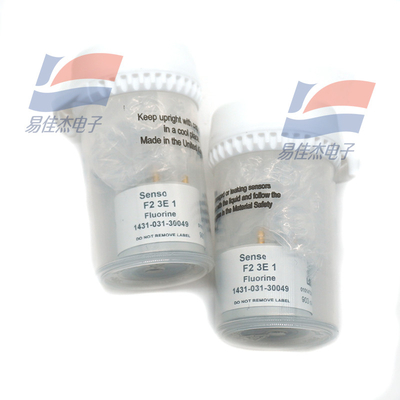

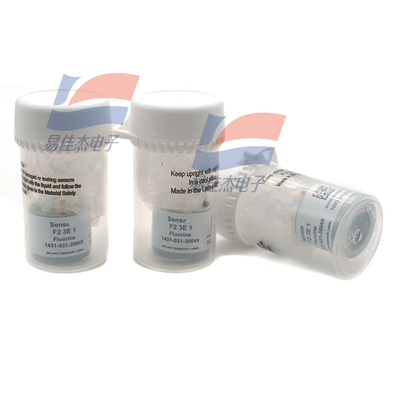

F2 3E 1 Three-electrode Electrochemical Fluorine Gas Sensor 0~1ppm High Reliability High Resolution For Chemical Industry Petrochemical Industry General Industry
FEATURES:
Amperometric 3-electrode sensor
High reliability
High resolution
Fixed organic gel electrolyte
TYPICAL APPLICATIONS:
Chemical Industry, Petrochemical Industry, General Industry
PART NUMBER INFORMATION:
MINI 1431-031-30009
SENSORIC CLASSIC 1431-031-30069
CTL 4 series adaptation 1431-031-30049
CTL 7 series adaptation 1431-031-30079
| Operation Conditions Temperature Range | -10°C to + 40°C |
| Operation Conditions Humidity Range | 15-90% r.H., non-condensing |
| Effect of Humidity | abrupt changes of rel. humidity will cause short term drift in zero reading |
| Sensor Life Expectancy | > 18 months |
| Warranty | 12 months |
