Product Details:
|
| Target Gases: | Refrigerant Gas R-32 | Circuit Voltage: | 5.0±0.2V DC |
|---|---|---|---|
| Output Voltage: | 3.50V Typical In 5000ppm R-32 Malfunction Condition: VOUT < 0.05V Or VOUT > 4.95V (Vc = 5.00V) | Reference Voltage: | 3.50±0.10V At 20˚C Malfunction Condition: VREF < 2.50V Or VREF > 3.70V (Vc = 5.00V) |
| Initial Alarm Accuracy: | 2800~7000ppm R-32 (under Standard Test Conditions) Alarm State: VOUT ≥ VREF Normal State: VOUT < VREF | Warm-up Time: | ≤60 Seconds (time Before VOUT < VREF After Power Is Turned On In A Clean Atmosphere) |
| Highlight: | Refrigeration Systems Gas Sensor Module,Analog Output Gas Sensor Module |
||

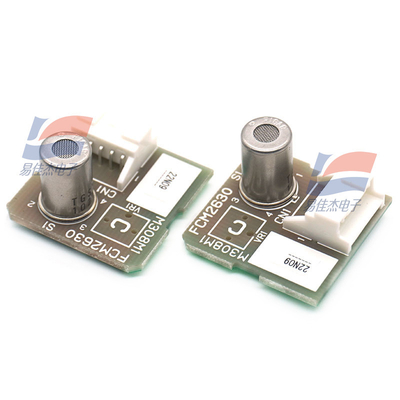

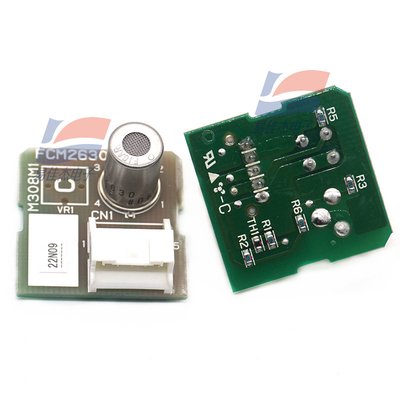

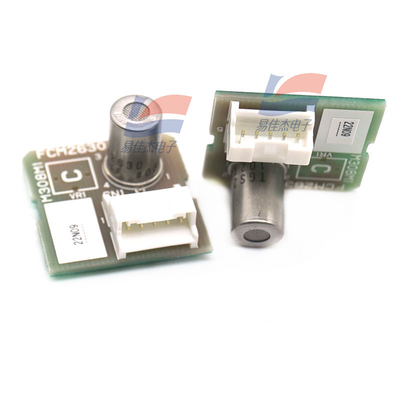

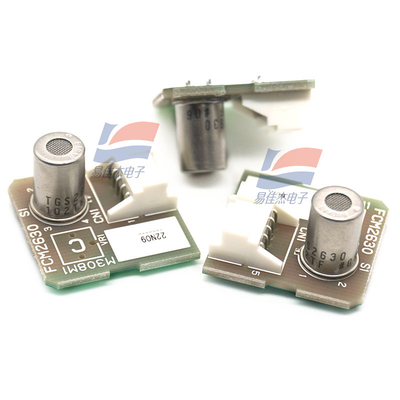

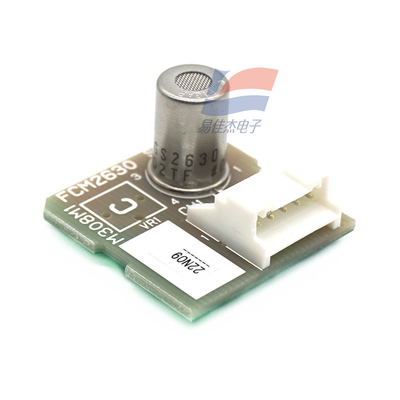

FCM2630-C01 Gas Sensor Module Pre-calibrated Module Is Used For Refrigerant Leak Detection In Refrigeration Systems Refrigerant Gases R-32 Factory Calibrated Analog Output
Features:
* Factory calibrated
* Temperature compensation circuit
* Resistant to interference gases
* Analog output
* Meets IEC60335-2-40 and JRA4068 requirements
Applications:
* Refrigerant gas leak detection in air
conditioning/refrigeration systems
FCM2630-C01* is an embedded type module using the semiconductor gas
sensor TGS2630 which is optimized to detect A2L refrigerant gas R-32.
This module enables users to easily build a reliable gas leakage detection
system by eliminating electronic circuit design for temperature compensation
and the calibration process. In addition, a connector allows easy replacement
of the gas sensor module for periodic maintenance.
The TGS2630 gas sensor has a built-in filter to reduce the influence of alcohol
and other interference gases, resulting in high selectivity to R-32. For more
detailed information on the gas sensor, including sensitivity characteristics,
see TGS2630 Product Information.
FCM2630-C01 is capable of satisfying the IEC60335-2-40 Edition 6.0 Annex LL and the JRA4068:2021
(Performance 3) standards. The applicable standards are both limited to refrigerant gas type R-32.
* FCM Series is the model name of refrigerant gas sensor modules supplied by Figaro Engineering Inc.
| Power consumption | approx. 0.3W |
| Weight | approx. 4g |
| Dimensions | 25 x 25 x 16mm |
| Test gas conditions | 20˚±2˚C, 65±5%RH |
| Circuit conditions | Vc = 5.00±0.05V DC |
