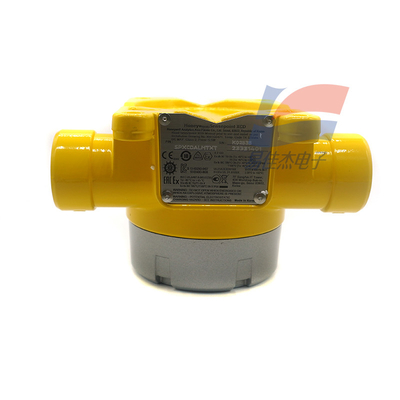

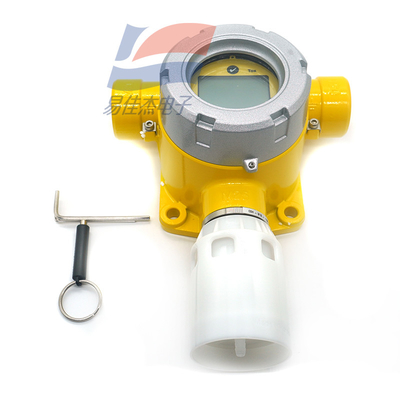

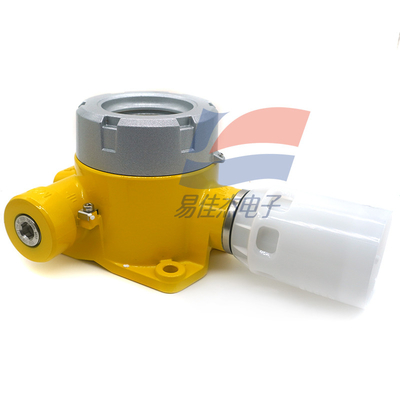

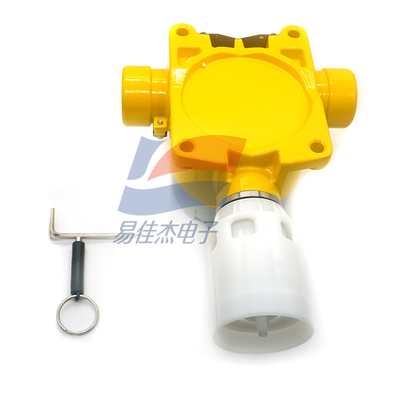

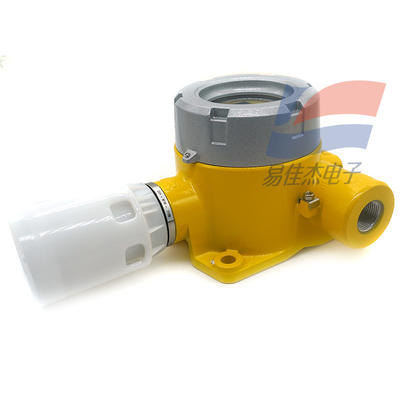

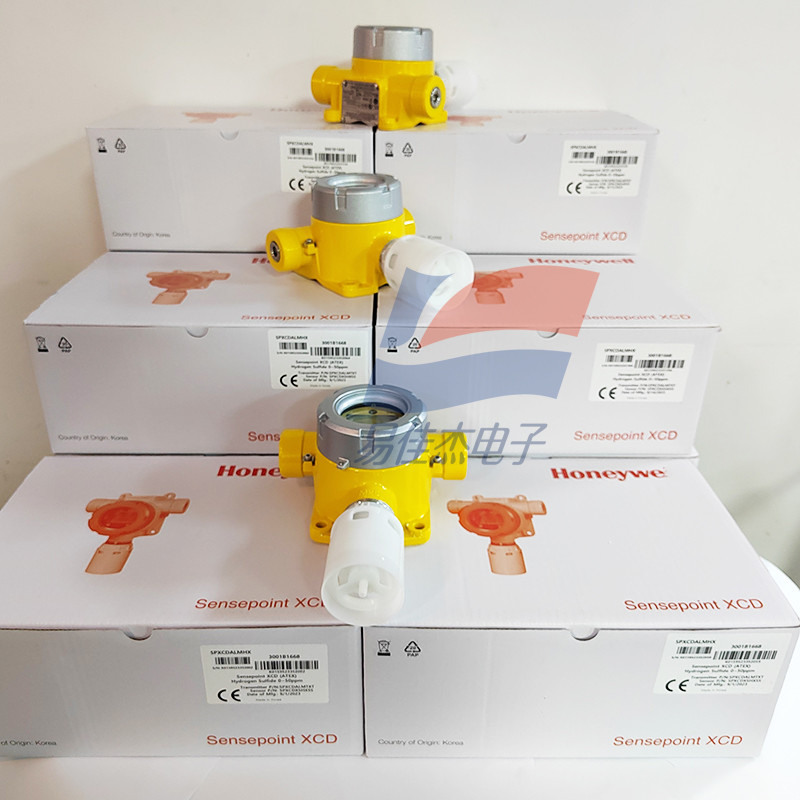

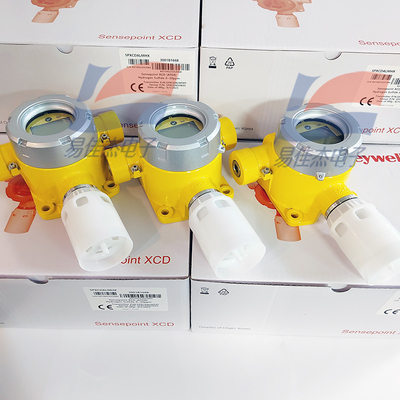

YJJ SPXCDALMHX Fixed Hydrogen Sulfide Gas Detector H2S Gas Alarm

Product Description:

SPXCDALMHX Fixed Hydrogen Sulfide Gas Detector H2S Gas Alarm

Features:

Sensepoint XCD Combustible Gas Detector SPXCDALMFX Combustible host SPXCDALMTXF sensor SPXCDXSFXSS

Stock model:

SPXCDALMFX Sensepoint XCD Combustible gas detector

SPXCDALMHX Sensepoint XCD hydrogen sulfide gas detector

SPXCDALMO1 Sensepoint XCD oxygen detector

SPXCDXSFXSS Sensepoint XCD flammable gas sensor

SPXCDXSHXSS Sensepoint XCD hydrogen sulfide sensor H2S probe

SPXCDXSO1SS Sensepoint XCD Oxygen sensor Oxygen probe

SPXCDUSNFX Combustible gas detector 34NPT interface

List of specifications

Outer box size: 31.5*23*13.5cm

Weight: Aluminum alloy: 1.7kg, 316 stainless steel: 2.2kg

Input voltage range: 16 to 32 VDC (nominal voltage is 24 VDC)

Communication: RS485, MODBUS RTU

Certified temperature range: 40° to +149°F (-40° to +65°C)

Transmitter material: Aluminum alloy, 316 stainless steel

Sensor material: 316 stainless steel

Installation method: wall or pipe installation

Connectors: 2 M20 (or 2 3/4 "NPT) field inlet ports, 1 M25 sensor connector

Features:

Repeatability +/-1% full scale

Visibility +/-1% full scale

Accuracy <+/-5% full scale (O2,CO,H2S, catalytic combustion)

Response time T50<=15S, T90<=30s (catalytic combustion and infrared sensors)

40.0-80.0mm(1.6 to 3.1 inches)

Size: 164*225*80mm

Power supply positive (16~32VDC) 24V 3.5KG

4~20mA current signal output 0-100%LEL

Detecting oxygen leakage 25.0%Vol
