Product Details:
|
| Detector: | 1, 2, 3 Or 4 - Gas Detector | Automatic Zero: | Yes |
|---|---|---|---|
| Calibration: | Automatic | Background Light: | Alarm Condition |
| Highlight: | SPXCDDMT Gas Detector,Sensepoint XCD Gas Detector,SPXCDDMF Gas Detector |
||
Product Description:

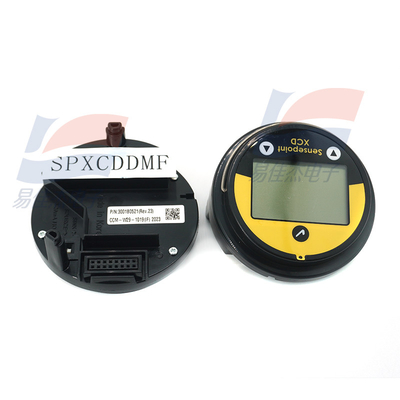

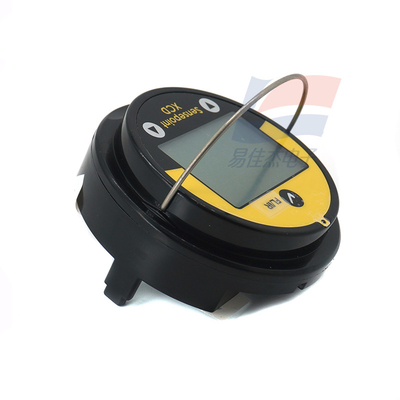

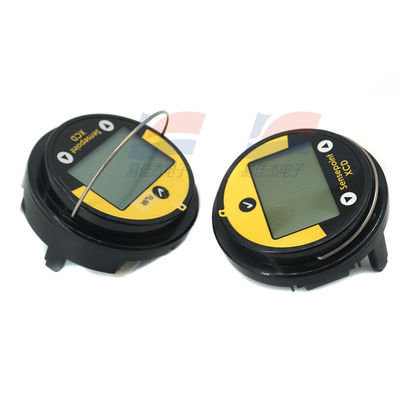

SPXCDDMT SPXCDDMF XCD Fixed universal Gas Detector Sensepoint XCD Gas Detector Front And Rear Covers
Features:
Sensepoint XCD gas detector is a fixed installation in the presence of flammable and explosive or toxic gases, used to detect the concentration of flammable gases, gases and oxygen in the air.
Sensepoint XCD's core components, such as sensors, use a number of patented technologies for more accurate detection and better long-term stability. The XCD is equipped with catalytic combustion, electrochemical and infrared sensors in the same housing, allowing it to measure a wider range of gases. The new RTD and RFD models support remote installation of sensors and transmitters and support universal 4-20mA output sensors. Therefore, XCD is widely used in general industrial fields such as petroleum, chemical, metallurgy, and manufacturing, and also performs well in some harsh environments.
The Sensepoint XCD(XCD is a homonym for "beyond" in English) contains a gas transmitter and a variety of optional sensors,
Including: combustible gas sensor, gas sensor and oxygen sensor. The structure of the Sensepoint XCD is suitable for hazards
Environment, of course, also applies to ordinary environment.
The Sensepoint XCD is equipped with a wide range of gas sensors that can detect a wide range of gases. Want to know more about
Please contact Detectors for more information on which gases the Sensepoint XCD can detect.
The Sensepoint XCD transmitter is equipped with 3 programmable relays in addition to field display
To control external devices such as sound and light alarms, solenoid valves and switches. The Sensepoint XCD transmitter is standard
Quasi-industrial 3-wire connection mode, output 4-20mA analog signal to gas detection control system or PLC.
Calibration and maintenance of the Sensepoint XCD is done via a magnetic bar. That way, it only takes one operator
Routine maintenance can be done without removing the cover. Sensepoint XCD is suitable for use in Class 1 and Class 2 hazard areas (EUR
Continent) or Class 1 Division 1 or Division 2 (North America)
Specifications:
| Outer box size | 31.5*23*13.5cm |
| Weight: Aluminum alloy | 1.7kg, 316 |
| stainless steel | 2.2kg |
| Input voltage range | 16 to 32 VDC (nominal voltage is 24 VDC) |
