Product Details:
|
| Measuring Range: | 0–30 Ppm | Sensitivity Range: | 140 NA/ppm ± 60 NA/ Ppm |
|---|---|---|---|
| Zero Current At 20°C: | < ± 100 NA | Resolution At 20°C: | < 0.7 Ppm |
| Bias Potential: | 200 MV | Linearity: | < 5% Full Scale |
| Highlight: | 30 Electrochemical Hydrogen Chloride Gas Sensor |
||

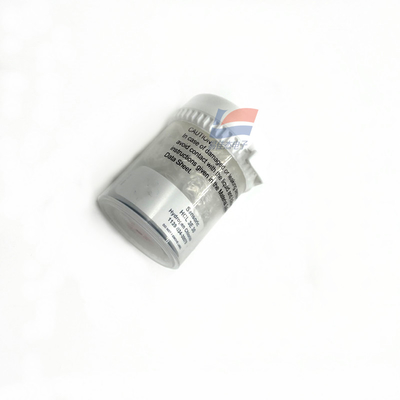

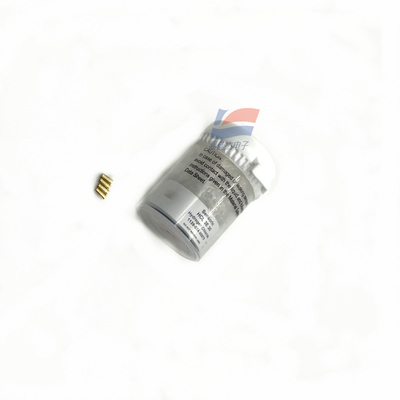

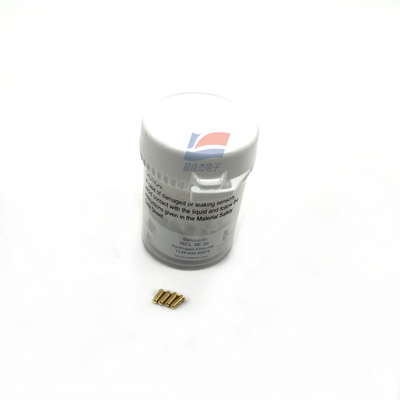

HCL 3E 30 Electrochemical Hydrogen Chloride Gas Sensor Amperometric 3 Electrode Sensor Cell Good Zero Stability For TLV-Monitoring Leak Detection
FEATURES:
Amperometric 3 electrode sensor cell
Short warm up time
Good zero stability
Fast response
1:1 cross interference to HBr
TYPICAL APPLICATIONS:
TLV-Monitoring
Leak detection
Pharmaceutical industry
PART NUMBER INFORMATION:
MINI 1139-034-30009
SENSORIC CLASSIC 1139-034-30069
CTL 4 series adaptation 1139-034-30049
CTL 7 series adaptation 1139-034-30079
| Long Term Sensitivity Drift | < 3% per month |
| Operation Conditions Temperature Range | -20°C to +40°C |
| Operation Conditions Humidity Range | 15–95% r.H., non–condensing |
| Effect of Humidity | high humidity causes HCl absorption |
| Sensor Life Expectancy | > 24 months |
